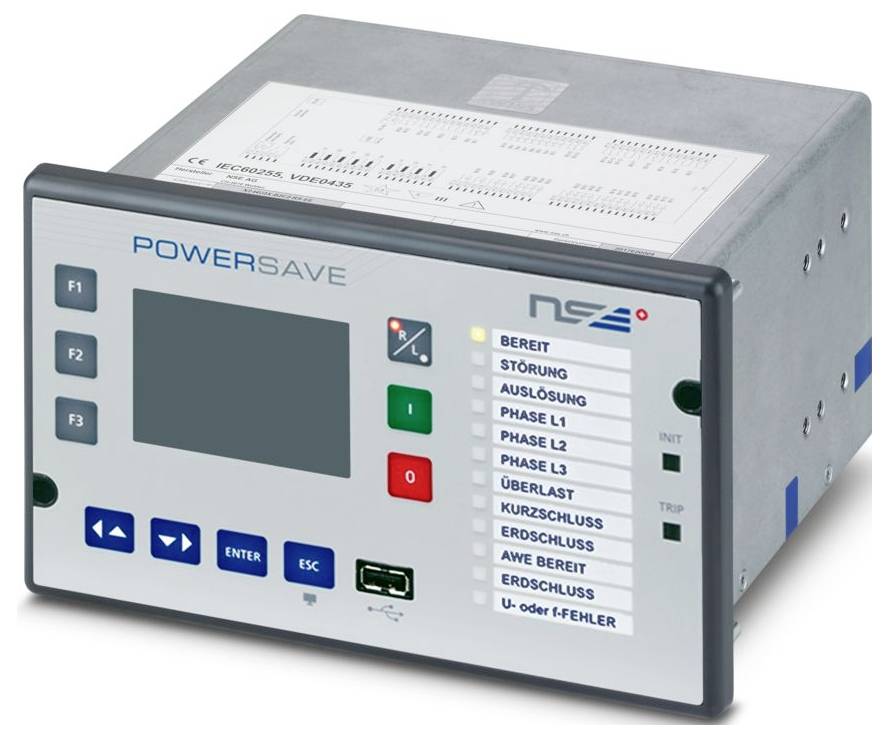

Phoenix Contact POWERSAVE-TAB-DI08 1566874 Controller/protection 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Modular design: Block modules
- RJ45 socket connection
- Ambient conditions: Environmental conditions
- IP51 (front)
- Ambient temperature (operation): -10 °C ... 55 °C to 3000 m üNN
- Ambient temperature (storage/transport): -25 °C ... 55 °C +70 ° C (for few hours)
- Mounting type: Rail mounting (2 mounting angles)
- Permissible humidity (operation): 95% (at 40 °C, condensation not permitted (ice formation not permitted))
- Transmission speed 10/100 MBit/s
- Number of interfaces: 1
- External dimensions: External dimensions
- Width / Height / Depth: 215 mm / 129 mm / 197 mm (Product Dimensions);215 mm / 129 mm / 197 mm (Product Dimensions)
- Note for application: Only for industrial use
- Digital: Digital
- Mounting dimensions
- Note on connection type: Auto negotiation and auto crossing, auto polarity exchange
- Input current: 1 A (secondary);5 A (secondary)
- Name of input: Current measurement I0, I1, I2, I3
- Measured parameter AC sine (50 Hz)
- Power consumption < 0.2 VA
- Input signal voltage: 24 V DC;22 V DC ... 28 V DC
- Data acquisition: Recorded data
- Measuring principle: Real-effective value measurement (TRMS)
- Measuring: Voltage: Measuring: Voltage
- Input voltage range via external converters: 0.1 V AC ... 420 V AC (secondary)
- Accuracy 0.5%
- Measuring: Current: Measuring: Current
- Measuring range: 0.01 A ... 320 A
- Current overload 100 x IN for 1 seconds
- USB USB USB
- Width / Height / Installation depth: 203 mm / 112 mm / 191 mm (Installation cut-out)
- Product type
Controller/protection
- Interfaces
RJ45
- Operating voltage
24 V DC
- Height
129 mm
- Length
197 mm
- Width
215 mm
IP51 (front)
- Dim
(L x W x H) 197 x 215 x 129 mm
- Manufacturer part #
1566874
- Type
POWERSAVE-TAB-DI08
- Type
modular block
- Fitting type (details)
Mounting rail (2 mounting angles)
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3569732 Phoenix Contact POWERSAVE-TAB-DI08 1566874 Controller/protection 24 V DC
User & Safety Instructions
User & Safety Instructions 3569732 Phoenix Contact POWERSAVE-TAB-DI08 1566874 Controller/protection 24 V DC
Description
Protection and control device, only for industrial use
