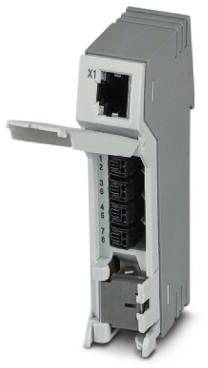

A grey-white electronic module with a flap that releases four connector interfaces. At the top is a network connection (X1).

Image similar

A grey-white electronic module with a flap that releases four connector interfaces. At the top is a network connection (X1).

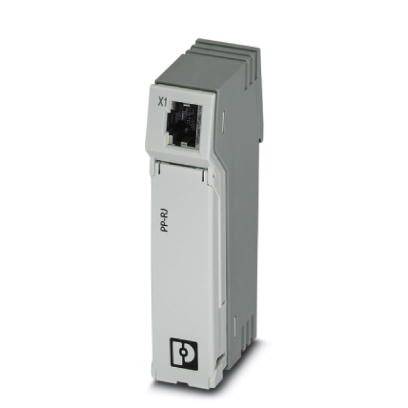

A grey electronic module with an Ethernet port, marked with 'PP-RJ' and a symbol, likely an industrial product.

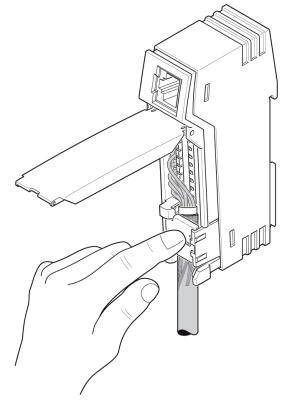

A hand is inserting a cable into a modem or router. The device's cover is open to allow the cable to be plugged in.

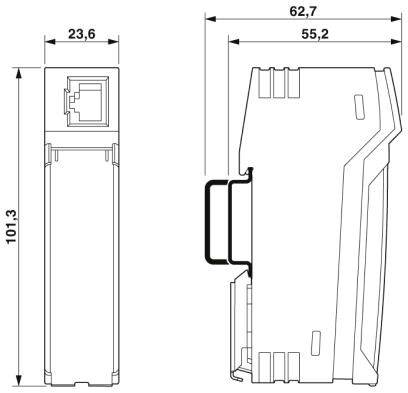

Technical drawing of a rectangular device with dimensions: height 101.3 mm, width 23.6 mm, depth 62.7 mm and 55.2 mm.

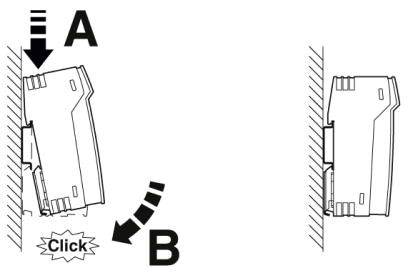

The diagram shows how a component (A) is pressed down and then (B) tilted until it clicks into place.

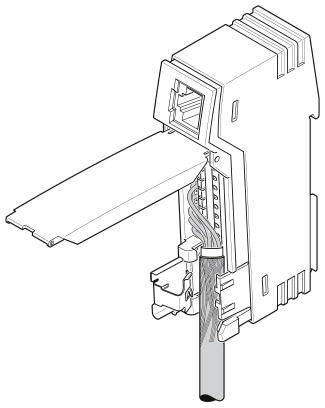

A technical drawing of an RJ45 connector in an enclosure with an open lid, showing visible cable connections.

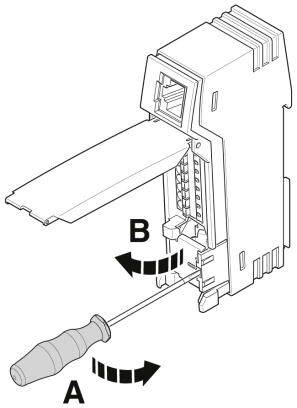

Illustration of a Technical Installation: A screwdriver (A) turns a screw. Lever (B) is flipped upwards.

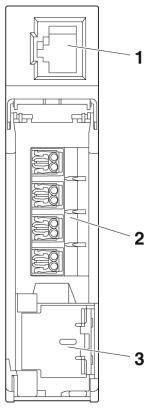

Schematic of an electrical component with three numbered sections. Section 1 shows a plug, Section 2 circuits, Section 3 connection contacts.

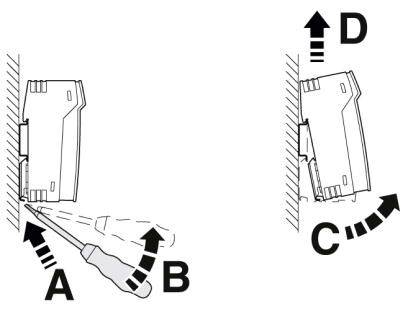

'Instructions for removing a device from its mount: Push screwdriver upwards (A/B), tilt device outwards (C/D).'

1/9

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (operating): -40 °C - +75 °C.
Ambient temperature (storage/transport): -40 °C - +85 °C.
Protection class: IP20
Net weight 101.6 g
Material casing: Plastic
Colour: grey
Transmission length 100 m (incl. patch cables)
Conductor cross-section: 0.14 mm² - 0.34 mm²
Conductor cross-section AWG: 26 - 22
RATED OUTPUT VOLTAGE< 60 V,< 57 V/DC
Maximum output power: 725 mA
Maximum output power 60 W.
Rated insulation voltage 85 V/DC

Product type: Patch panel

Transfer rate: 10 / 100 / 1000 MBit/s

Connection method: IDC

Width: 23.8 mm

Height: 101.3 mm

Depth: 23.8000 mm

Length: 50 mm

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2136742 Phoenix Contact PP-RJ-IDC Patch panel

User & Safety Instructions

User & Safety Instructions 2136742 Phoenix Contact PP-RJ-IDC Patch panel

Description

Safe shield connection to ground potential.

This text is machine translated.
