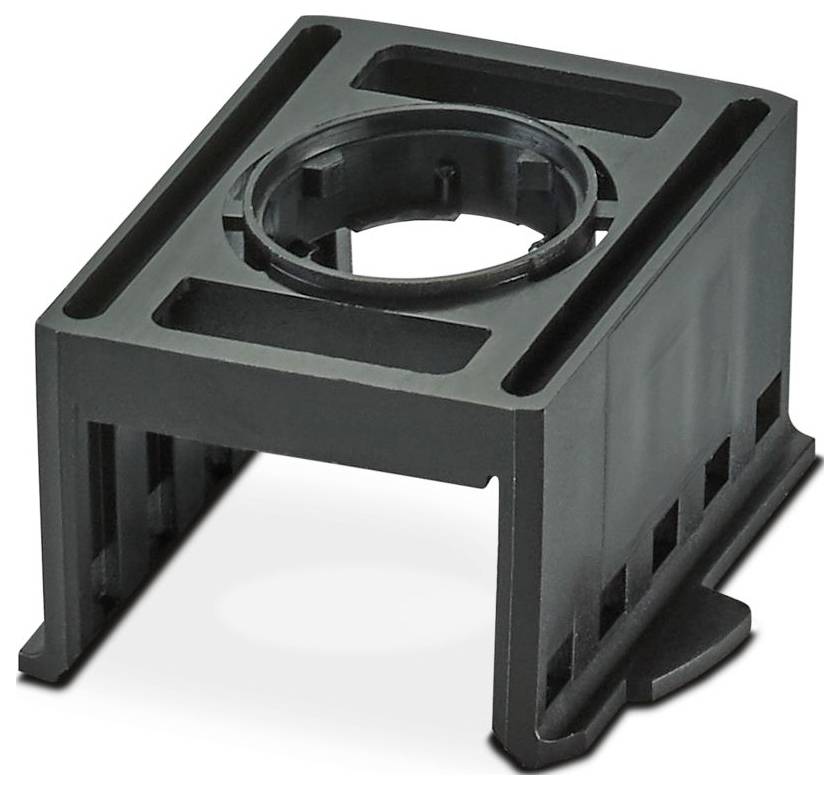

Phoenix Contact PSR-ESS-ACC-CB1-C5 Holder 5 installation slots 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Modular emergency stop switches
- Width: 45.3 mm
- Height: 1.8" (50.8 mm)
- Depth: 25.2 mm
- Colour: Black (RAL 9005)
- Flammability class according to UL 94 V2
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -30 °C ... 85 °C (observe ambient temperature of the inserted actuator and contact sensor)
- Ambient temperature (storage/transport): -50 °C ... 85 °C
- Vibration (operation): 10 Hz ... 500 Hz, 0.35 mm amplitude, 5g, according to IEC 60068-2-6
- All mounting positions permitted
- Material: PA.
- Note for application: Only for industrial use
- Operating height: Max. 2000 m (above NN)
- Shock 15g / 11 ms, according to IEC 60068-2-27
- Application: Holder for 5 elements
- Number: 5 (PSR-ESS elements)
- Diameter of mounting hole 22.30 mm
- Product type
Holder
- Switch/button features
5 installation slots
- Contact material
PA
- Recess diameter
22.30 mm
- Length
25.2 mm
- Width
45.3 mm
- Height
50.8 mm
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Type
PSR-ESS-ACC-CB1-C5
- Content
1 pc(s)
- Dim
(L x W x H) 25.2 x 45.3 x 50.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566895 Phoenix Contact PSR-ESS-ACC-CB1-C5 Holder 5 installation slots 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3566895 Phoenix Contact PSR-ESS-ACC-CB1-C5 Holder 5 installation slots 1 pc(s)
Description
Module holder for modular emergency stop switch, connects contact block and actuator with bayonet closure, suitable for 5 elements
