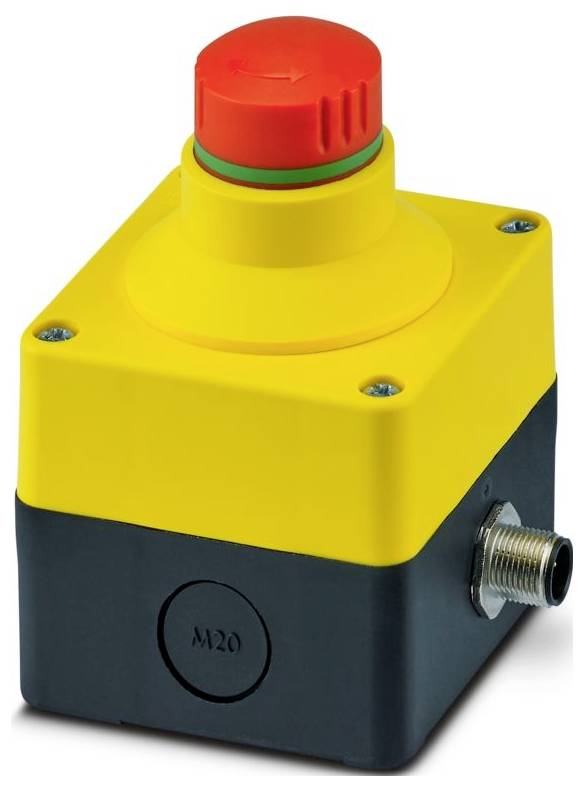

Phoenix Contact PSR-ESS-M2-H110-2000-A Kill switch + kill switch 2 breakers IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: M12 connector, A coded
- Width 72 mm
- Height: 72 mm
- Depth: 110 mm
- Flammability class according to UL 94: V2 (actuator);V0 (contact element);V2 (housing);UR (M12 plug UR-approved)
- Material: housing: PA
- Ambient conditions: Environmental conditions
- Protection system: IP65
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Mounting type: Surface mounting
- Insulation properties: Insulation properties
- Overvoltage category III (applies to the fitted contact sensor)
- Pollution level: 3 (applies to the installed contact sensor)
- Vibration (operation): 10 Hz ... 500 Hz, 0.35 mm amplitude, 5g, according to IEC 60068-2-6
- All mounting positions permitted
- Note for application: Only for industrial use
- Current: Max. (see load limiting current)
- Mounting instructions: Fixing hole: Ø 4.2 mm
- Operating height: Max. 2000 m (above NN)
- Shock 15g / 11 ms, according to IEC 60068-2-27
- Voltage: Max. (see load limiting current)
- Contact version: 2 forced NC contacts
- Dimensioning surge voltage: 1.5 kV
- Mechanical life: 50000 switching cycles
- Contact material AgNi
- Switching capacity: 1.1x Ie
- Electrical life: 106 switching cycles
- Rated operating voltage Ue 60 V;24 V
- Contact details: Contact details
- Forced opening: According to EN 60947-5-1, Appendix K.
- Bounce duration < 9 ms
- Load limit current according to IEC/EN 60947-5-1: Load limit current according to IEC/EN 60947-5-1
- Standard IEC / EN 60947-5-1
- Usage category: DC13
- Rated insulation voltage UI 600 V
- Rated operating current Ie: 1 A;2 A.
- Colour (mushroom button): Red (RAL 3001)
- Colour (upper case section): Yellow (RAL 1018)
- Colour (lower part of housing): Black (RAL 9005)
- Product type
Kill switch
- Switch/button features
+ kill switch
- Print motif
EMERGENCY STOP
- Contact material
AgNi
- Contact type
2 breakers
- Factory colour
Red
- Connection
Connector
- Recess diameter
4.2 mm
- Length
110 mm
- Width
72 mm
- Height
72 mm
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP65
- Type
PSR-ESS-M2-H110-2000-A
- Content
1 pc(s)
- Dim
(L x W x H) 110 x 72 x 72 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566878 Phoenix Contact PSR-ESS-M2-H110-2000-A Kill switch + kill switch 2 breakers IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3566878 Phoenix Contact PSR-ESS-M2-H110-2000-A Kill switch + kill switch 2 breakers IP65 1 pc(s)
Description
Emergency stop switch in IP65 housing, suitable for use with suitable evaluation unit up to PL e (EN ISO 13849-1), SIL 3 (EN IEC 62061), surface mounting, 5-pin M12 connection
