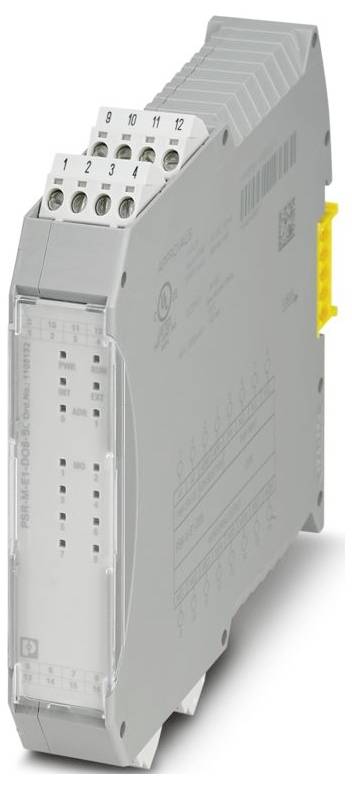

'A gray electronic signal conditioner module with multiple connection points, designed for industrial use in control systems.'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Connection type: screw terminals.
M3 screw thread
Tightening torque: 0.5 Nm ... 0.6 Nm
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
Wire cross-section AWG: 24 ... 12
Width: 22.61 mm
Height: 112.58 mm
Depth: 113.6 mm
Material housing: Unchanged polyamide PA
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -10 °C ... 55 °C (observe De-rating)
Ambient temperature (storage/transport): -20 °C ... 85 °C
Mounting type: Rail mounting
Insulation properties: Insulation properties
Overvoltage category II
Pollution level: 2
Vibration (operation): 10 Hz ... 150 Hz, 2g
Stripped length: 7 mm
Mounting position: Vertical or horizontal
Maximum power loss at rated conditions: 1.82 W (at max. permissible load)
Protection class III (EN 50178)
Connection technology: Connection technology
Note for application: Only for industrial use
Cable length: Max. 100 m (per output)
Wire connection: Conductor connection
Switching frequency: Max. 1/4 x tCycle [Hz]
Installation instructions: Observe derating
Operating height: ≤ 2000 m (over NN)
Max. ass. Humidity (operating): 95% (no condensation)
Shock: 10g for Δt = 16 ms (continuous shock, 1000 shocks per direction)
Voltage 24 V DC (over 24V)
Protection circuit: Suppressor diode
1 x LED (green), 2 x LED (orange); 8 x LED (yellow)
Output voltage range: 18.2 V DC ... 27.8 V DC (US - 1 V)
Naming 24V/A2
Application: Expansion module
Supply: Supply
Colour (housing): Yellow (RAL 1018)
Inrush current 2 A (Δt = 1 ms at US)
Description of the output: PNP, IEC 61131-2 type 0.1; not safety-related;reference ground A2
Switch-on current maximum 1.1 A (Δt = 3 s at US)
Power supply 1 x LED (green)
Limit continuous current:100 mA (per channel);400 mA (total current of all digital signal outputs)
Leakage current: Max. 100 µA
Rated control circuit supply voltage US: 24 V DC -20 % / +20 % (externally secured, typically 4 A)
Rated control feed current IS: Typ. 20 mA (outputs active, without load)
Times: Times
Rating type 100 % ED
Rated surge voltage / insulation: Basic insulation 4 kV between all current paths and housing
Filter time: Typ. 1 MS (for voltage dips)
Number of outputs: 8
Protection class Installation location minimum: IP54
Max. ass. Humidity (storage/transport): 95% (no condensation)
Error display: 2 x LED (red)
plug connection: yes
Power consumption in US: Typical 0.48 W
Restart time: Min. 5 s (boot time);max. 10 s (Boot time)
Resistive load: Min. 180 Ω (observe continuous current limit)
Short-circuit protection: Yes (self-restricted in case of 1.1 A)
Discharge circuit: No.
Response time: See user manual
Interfaces: Mounting rail TBUS for connection to the master module, included in the delivery
Output voltage in switched off state: Max. 0.1 V.
REPORTING: MO1, MO2, MO3, MO4, MO5, MO6, MO7, MO8: REPORT: MO1, MO2, MO3, MO4, MO5, MO6, MO7, MO8
