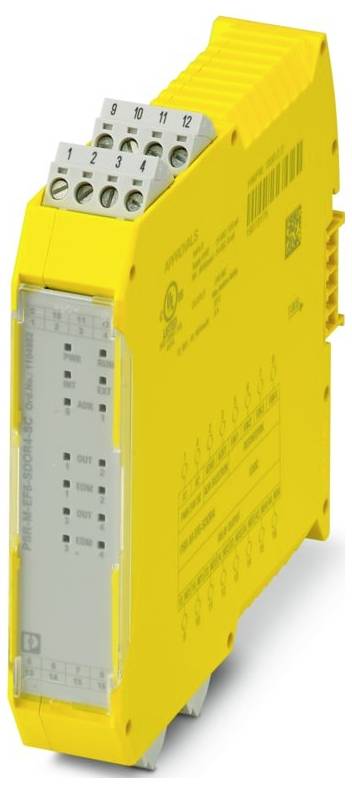

Phoenix Contact PSR-M-EF6-SDOR4-SC 1104982 Expansion 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: screw terminals.
- M3 screw thread
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 12
- Width: 22.61 mm
- Height: 112.58 mm
- Depth: 113.6 mm
- Material housing: Unchanged polyamide PA
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -10 °C ... 55 °C (observe De-rating)
- Ambient temperature (storage/transport): -20 °C ... 85 °C
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Vibration (operation): 10 Hz ... 150 Hz, Amplitude 0.15 mm, 2g
- Stripped length: 7 mm
- Mounting position: Vertical or horizontal
- Maximum power loss at rated conditions 7.07 W.
- Protection class III
- CE CE
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Cable length: Max. 100 m (per input)
- Current consumption: Type 10 mA (type. At US);max. 13 mA (with control voltage 28.8 V DC)
- Wire connection: Conductor connection
- Switching frequency 0.5 Hz
- Installation instructions: Observe derating
- Operating height: ≤ 2000 m (over NN)
- Max. ass. Humidity (operating): 95% (no condensation)
- Shock: 10g for Δt = 16 ms (continuous shock, 1000 shocks per direction)
- Protection: Serial reverse polarity protection
- Status display: 4 x LED (yellow);4 x LED (green, red);1 x LED (green), 2 x LED (orange)
- Switching voltage: Min. 10 V AC/DC; MAX. 250 V AC/DC (pay attention to load curve)
- Designation A1/A2
- Application: Safe shutdown
- Supply: Supply
- Colour (housing): Yellow (RAL 1018)
- Min. Switch-on current 20 mA; max. 6 A
- Description of the output: Safety-related normally open contacts
- Power supply 1 x LED (green)
- Contact version: 4 safe outputs
- Continuous current max. 4 A (observe derating)
- Rated control circuit supply voltage US: 24 V DC -20 % / +20 % (externally secured, typically 4 A)
- Rated control feed current IS: Typ. 120 mA
- Safety specifications: Safety specifications
- Mechanical life 40x 106 switching operations
- SWITCHING CAPACITY 3 A (250 V (AC15));2 A (24 V (DC13)
- Output 4 A gL/gG
- Times: Times
- Rating type 100 % ED
- Rated surge voltage / insulation: Basic insulation 4 kV between all current paths and housing
- 250 ms ±2 ms (test pulse rate > 500 ms)
- Number of outputs: 4 (1 NO per output)
- Switching capacity: Min. 200 mW
- Quadr. Total current: 64 A2 (for 4 x 1-channel, note derating);32 A2 (for 2 x 2-channel, observe derating)
- Safety specifications: EN ISO 13849: Safety specifications: EN ISO 13849
- Performance Level (PL): E (2-channel wiring);c (1-channel wiring)
- Safety integrity level (SIL): 3 (2-channel connection);1 (1-channel connection)
- Safety specifications : EN IEC 62061: Safety specifications: EN IEC 62061
- Protection class Installation location minimum: IP54
- Max. ass. Humidity (storage/transport): 95% (no condensation)
- Description of the input: IEC 61131-2 Type 2
- Number of inputs: 4
- Error display: 2 x LED (red)
- Input voltage range "0" signal: 0 V DC ... 5 V/DC
- Input voltage range "1" signal: 11 V DC ... 28.8 V DC
- plug connection: yes
- 1 and 2 channel control
- Power consumption in US: Typical 2.88 W
- Stop category: 0
- Restart time: Min. 5 s (boot time);max. 10 s (Boot time)
- Input current range 0 signal < 1 mA
- Max. Permissible total line resistance: 1.2 kΩ (input and reset circuit for US)
- Response time: See user manual
- Interfaces: Mounting rail TBUS for connection to the master module, included in the delivery
- Security specifications: IEC 61508 - high-demand for 2-channel wiring: Safety-technical data: IEC 61508 - high-demand for 2-channel wiring
- Security specifications: IEC 61508 - high-demand for 1-channel wiring: Safety-technical data: IEC 61508 - high-demand for 1-channel wiring
- Digital: Reset inputs (FBK1, FBK2, FBK3, FBK4): Digital: Reset inputs (FBK1, FBK2, FBK3, FBK4)
- RELAY: ENABLE CURRENT PATHS (13 44_NO1/14 34_NO1, 23_NO2/24_NO2, 33_NO3/34_NO3, 43_NO4/44_NO4): RELAY: ENABLE CURRENT PATHS (43_NO1/14_NO1, 23_NO2/24_NO2, 33_NO3, 13_NO4/NO4)
- Product type
Expansion
- No. of digital inputs (max.)
4
- No. of inputs (max.)
4
- No. of outputs (max.)
4
- No. of relay outputs (max.)
4
- Operating voltage
24 V DC
- Height
112.58 mm
- Length
113.6 mm
- Width
22.61 mm
IP20
- Dim
(L x W x H) 113.6 x 22.61 x 112.58 mm
- Connection
Screw connection
- Manufacturer part #
1104982
- Type
PSR-M-EF6-SDOR4-SC
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- Depth
113.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564013 Phoenix Contact PSR-M-EF6-SDOR4-SC 1104982 Expansion 24 V DC
User & Safety Instructions
User & Safety Instructions 3564013 Phoenix Contact PSR-M-EF6-SDOR4-SC 1104982 Expansion 24 V DC
Description
Safe expansion module with 4 safe relay outputs, 4 reset inputs, TBUS interface, up to SIL 3, CAT. 4/PL e, Pluggable screw terminal, TBUS-connector included
