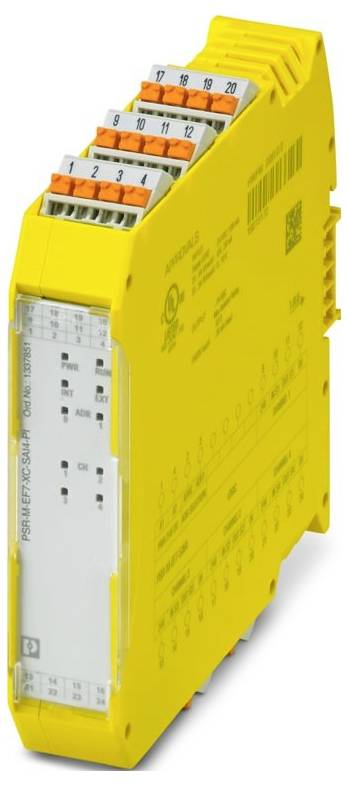

Phoenix Contact PSR-M-EF7-XC-SAI4-PI 1337851 Expansion 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 14
- Width: 22.61 mm
- Height: 107.74 mm
- Depth: 113.6 mm
- Material housing: Unchanged polyamide PA
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -10 °C ... 70 °C (observe De-rating)
- Ambient temperature (storage/transport): -20 °C ... 85 °C
- Note: T4: For -10 °C Tamb +50 °C.
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Vibration (operation): 10 Hz ... 150 Hz, 2g
- Stripped length: 10 mm
- Mounting position: Vertical or horizontal
- ATEX
- Marking G3
- Maximum power loss at rated conditions: 2.76 W (at max. permissible load)
- Protection class III
- Frequency: 20 Hz (max. recommended sensor signal frequency, as current input);2 Hz (max. recommended sensor signal frequency, as voltage input)
- CE CE
- Certificate ISA-S71.04
- Connection technology: Connection technology
- Short-circuit-proof: Yes
- Wire connection: Conductor connection
- Analogue: Analogue
- Current: Max. 30 mA (sensor current consumption per channel)
- Installation instructions: Observe derating
- Operating height: ≤ 2000 m (over NN)
- Max. ass. Humidity (operating): 95% (no condensation)
- Shock: 10g for Δt = 16 ms (continuous shock, 1000 shocks per direction)
- Protective circuit: Overload protection Overload detection at 38 mA
- 4 x LED (yellow, red)
- Designation A1/A2
- Application: Analogue IN
- Supply: Supply
- Colour (housing): Yellow (RAL 1018)
- Inrush current: Max. 14 A (Δt = 1 ms for US)
- Power supply 1 x LED (green)
- Rated control circuit supply voltage US: 24 V DC -20 % / +20 % (externally secured, typically 6 A)
- Rated control feed current IS: Typ. 82 mA (without sensor supply);typ. 212 mA (with sensor supply)
- Safety specifications: Safety specifications
- Times: Times
- Rating type 100 % ED
- Rated surge voltage / insulation: Basic insulation 4 kV between all current paths and housing; galvanic isolation, 0.5 kV functional isolation between logic and analog inputs and the analog inputs with each other
- Filter time: Typ. 5 ms (at voltage dips in US)
- Safety specifications: EN ISO 13849: Safety specifications: EN ISO 13849
- Performance Level (PL): E (2-channel wiring);d (1-channel wiring)
- Safety integrity level (SIL): 3 (2-channel connection);2 (1-channel connection)
- Safety specifications : EN IEC 62061: Safety specifications: EN IEC 62061
- Protection class Installation location minimum: IP54
- Max. ass. Humidity (storage/transport): 95% (no condensation)
- NAMING INPUT: IN S1, IN S2, IN S3, IN S4
- Input resistance Power input: 290 Ω ±25 % (including internal protective circuit)
- Max. Permissible current: Max. 35 mA (as current input)
- Limiting frequency (3 dB): 160 Hz (RC-low pass,1. Order, as current input);4 Hz (RC low-pass, as voltage input)
- Input signal current: 0 mA ... 25 mA (measuring range);0 mA ... 20 mA (configurable measuring range with diagnostic range 20.1 mA ... 23 mA);4 mA ... 20 mA (configurable measuring range with diagnostic range 20.1 mA ... 23 mA (upper limit), 2.5 mA ... 3.8 mA (lower limit)
- Description of the input: Safety-related analog inputs, configurable as current or voltage inputs, isolated
- Number of inputs: 4
- Input signal voltage: 0 V ... 12 V (measuring range);0 V ... 10 V (configurable measuring range with diagnostic range 10.05 V ... 11.5 V (upper limit), 0.1 V (lower limit))
- Accuracy type ± 2 % (as current input, relative to measuring range end value);max. ± 2.5 % (as current input);typ. ± 1 % (as voltage input, relative to measuring range end value);max. ± 1.5 % (as voltage input)
- Supply voltage 24 V DC ±3 %
- plug connection: yes
- 1 and 2 channel control
- Power consumption in US: Typical 1.96 W (without sensor supply);typ. 5.08 W (with sensor supply)
- Stop category: 0
- Restart time: Min. 5 s (boot time);max. 10 s (Boot time)
- Response time: See user manual
- Interfaces: Mounting rail TBUS for connection to the master module, included in the delivery
- Security specifications: IEC 61508 - high-demand for 2-channel wiring: Safety-technical data: IEC 61508 - high-demand for 2-channel wiring
- Security specifications: IEC 61508 - high-demand for 1-channel wiring: Safety-technical data: IEC 61508 - high-demand for 1-channel wiring
- Ambient temperature (operation) (ATEX): -10 °C ... 50 °C (For use in hazardous areas. Observe derating
- UL Ex, USA / Canada: UL Ex, USA / Canada
- Environmental simulation test: Environmental simulation test
- Input resistance voltage input 185 kΩ ±25 %
- Note on connection technology: Shielded
- Sampling rate 2.5/5/10/16.6/20/50/60/100/200/400/800/1000/2000/4000 Hz
- Permissible voltage: Max. 24 V (as current input);max. 14 V (as voltage input)
- 16-bit A/D converter resolution
- Resolution (Current) 381 nA
- Resolution (Voltage) 152 µV
- Temperature coefficients: Typical ± 0.07 %/K; max. ± 0.07 %/K.
- Permitted cable length: Max. 100 m (per input)
- SENSOR SUPPLY: OUT S1/0V ...OUT S4/0V: SENSOR SUPPLY: OUT S1/0V ...OUT S4/0V
- Description: Sensor supply voltage per analog input
- Product type
Expansion
- No. of analogue inputs
4
- No. of inputs (max.)
4
- Operating voltage
24 V DC
- Height
107.74 mm
- Length
113.6 mm
- Width
22.61 mm
IP20
- Dim
(L x W x H) 113.6 x 22.61 x 107.74 mm
- Connection
Push-in wire connector
- Manufacturer part #
1337851
- Type
PSR-M-EF7-XC-SAI4-PI
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
70 °C
- Min. ambient temperature
-10 °C
- Depth
113.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3582928 Phoenix Contact PSR-M-EF7-XC-SAI4-PI 1337851 Expansion 24 V DC
User & Safety Instructions
User & Safety Instructions 3582928 Phoenix Contact PSR-M-EF7-XC-SAI4-PI 1337851 Expansion 24 V DC
Description
Safe expansion module with 4 safe analog inputs, 0 V ... 10 V, 0 mA or 4 mA ... 20 mA, TBUS interface, up to CAT. 4/PL e , SIL 3, plug-in push-in terminal, TBUS connector included
