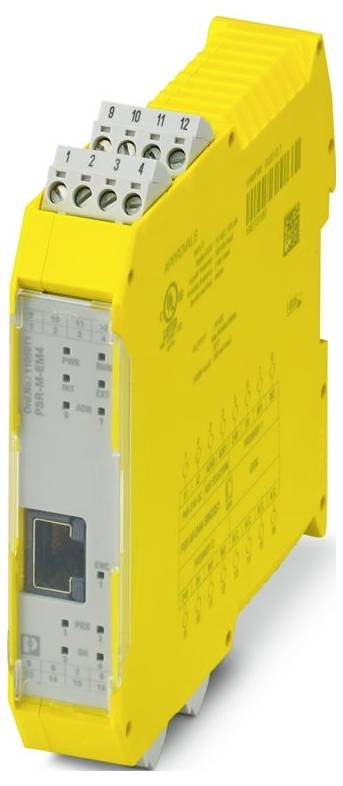

Phoenix Contact PSR-M-EM4-SINCOS1-SC 1105011 Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of outputs, alarm function, undelayed, semiconductor: 0
- Number of outputs, signaling function, instantaneous, contact afflicted: 0
- Number of outputs, signaling function, delayed, semiconductor: 0
- Number of outputs, signaling function, delayed, contact afflicted: 0
- Number of outputs, safety-related, instantaneous, semiconductor: 0
- Number of outputs, safety-related, instantaneous, contact-afflicted: 0
- Number of outputs, safety-related, delayed, semiconductor: 0
- Number of outputs, safety-related, delayed, contact-afflicted: 0
- Design: Extension device
- Design of electrical connection: Screw connection
- Evaluation of the inputs: Other
- Suitable for monitoring magnetic switches: No.
- Suitable for monitoring emergency-OFF circuits: No.
- Suitable for monitoring proximity switches: No.
- Suitable for monitoring opto-electronic protection devices: No.
- Suitable for monitoring tactile sensors: No.
- Suitable for monitoring valves: No.
- With removable terminals: Yes
- With muting function: No.
- With feedback circuit: No.
- With start input: No.
- With approval for BG BIA: No.
- With UL approval: No.
- Rail mounting possible: Yes
- Product type
Expansion
- No. of outputs (max.)
0
- Height
112.58 mm
- Width
22.61 mm
- Dim
(W x H x D) 22.61 x 112.58 x 113.6 mm
- Connection
Screw connection
- Manufacturer part #
1105011
- Type
PSR-M-EM4-SINCOS1-SC
- Depth
113.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564066 Phoenix Contact PSR-M-EM4-SINCOS1-SC 1105011 Expansion
User & Safety Instructions
User & Safety Instructions 3564066 Phoenix Contact PSR-M-EM4-SINCOS1-SC 1105011 Expansion
Description
Safe expansion module for monitoring standstill, speed, direction of rotation, monitoring of 2 axes, NPN/PNP proximity switch, 1 x Sin/Cos encoder, TBUS interface, up to SIL 3 , CAT. 4/PL e, pluggable screw terminals, TBUS connector included
