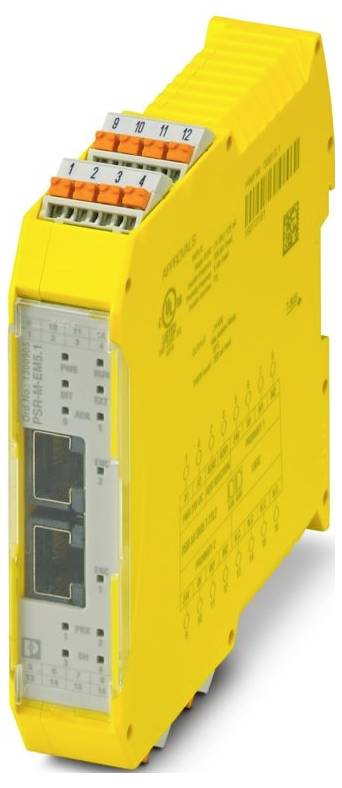

Image similar
Phoenix Contact PSR-M-EM5.1-TTL2-PI 1300905 Expansion 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 14
- Width: 22.61 mm
- Height: 107.74 mm
- Depth: 113.6 mm
- Material: housing: PA
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -10 °C ... 55 °C (observe De-rating)
- Ambient temperature (storage/transport): -20 °C ... 85 °C
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Vibration (operation): 10 Hz ... 150 Hz, 2g
- Stripped length: 10 mm
- Mounting position: Vertical or horizontal
- Maximum power loss at rated conditions 4 W (UB = 28.8 V, IN1 = IN2 = 50 mA, 2 encoder)
- Protection class III
- CE CE
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Current consumption: Type 42 mA (each track in US)
- Wire connection: Conductor connection
- Installation instructions: Observe derating
- Operating height: ≤ 2000 m (over NN)
- Max. ass. Humidity (operating): 95% (no condensation)
- Shock: 10g for Δt = 16 ms (continuous shock, 1000 shocks per direction)
- Protection circuit: Suppressor diode
- 1 x LED (green), 2 x LED (orange); 6 x LED (yellow)
- Designation A1/A2
- Application: Speed monitor;standstill monitor;Phase rotation monitoring
- Supply: Supply
- Colour (housing): Yellow (RAL 1018)
- Switch-on current 40 A (Δt = 500 µs at US)
- Power supply 1 x LED (green)
- Rated control circuit supply voltage US: 24 V DC -20 % / +20 % (externally secured, typically 1 A)
- Rated control feed current IS: Typ. 70 mA
- Times: Times
- Rating type 100 % ED
- Rated surge voltage / insulation: Basic insulation 4 kV between 24 V supply and I/Os to the housing
- Filter time: Typ. 10 ms (on A1 in case of voltage dips in US)
- Performance level (PL): E
- Safety Integrity Level (SIL) 3
- Safety specifications : EN IEC 62061: Safety specifications: EN IEC 62061
- Protection class Installation location minimum: IP54
- Max. ass. Humidity (storage/transport): 95% (no condensation)
- Name of input: Encoder inputs
- Description of the input: TTL
- Number of inputs: 2
- Error display: 2 x LED (red)
- Accuracy: 5% (relative to the parameterized limit)
- Input voltage range "0" signal: 0 V DC ... 5 V DC (NPN);16 V DC ... 28.8 V DC (PNP)
- Input voltage range "1" signal: 16 V DC ... 28.8 V DC (NPN);0 V DC ... 5 V DC (PNP)
- plug connection: yes
- 1 and 2 channel control
- Power consumption in US: Typical 1.7 W
- Security specifications : IEC 61508 - High-Demand: Security specifications: IEC 61508 - High-Demand
- Restart time: Min. 5 s (boot time);max. 10 s (Boot time)
- Input current range "0" signal: < 2 mA (NPN)
- Cut-off frequency: Max. 500 kHz
- Max. Permissible total line resistance: 150 Ω
- Short-circuit protection: No.
- Response time: See user manual
- Interfaces: Mounting rail TBUS for connection to the master module, included in delivery;Encoder;Proximity switch
- Rated output voltage range: 16.7 V DC ... 26.3 V DC (US - 2.5 V)
- Measuring: Measuring
- Scanning rate: 55 % ... 95 %.
- Pulse width: Min. 20 µs
- 120 Ω input impedance (per track)
- TTL Signal form/signal level: 2.5 V ... 5 V (scanning rate track A, B: 50 % ±15 %, phase shift track A, B: 90° ±40°)
- Digital: Proximity switch supply (24V/0V): Digital: Proximity switch supply (24V/0V)
- Safety specifications: EN ISO 13849-1: Safety specifications: EN ISO 13849-1
- Product type
Expansion
- No. of digital inputs (max.)
2
- No. of inputs (max.)
4
- Operating voltage
24 V DC
- Height
107.74 mm
- Length
113.6 mm
- Width
22.61 mm
IP20
- Dim
(L x W x H) 113.6 x 22.61 x 107.74 mm
- Connection
Push-in wire connector
- Manufacturer part #
1300905
- Type
PSR-M-EM5.1-TTL2-PI
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- Depth
113.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3582789 Phoenix Contact PSR-M-EM5.1-TTL2-PI 1300905 Expansion 24 V DC
User & Safety Instructions
User & Safety Instructions 3582789 Phoenix Contact PSR-M-EM5.1-TTL2-PI 1300905 Expansion 24 V DC
Description
Safe expansion module for monitoring standstill, speed, direction of rotation, monitoring of 2 axes, NPN/PNP proximity switch, 2x TTL encoders without voltage monitoring, SIL 3, CAT. 4/PL e, plug-in push-in terminal, TBUS connector included
