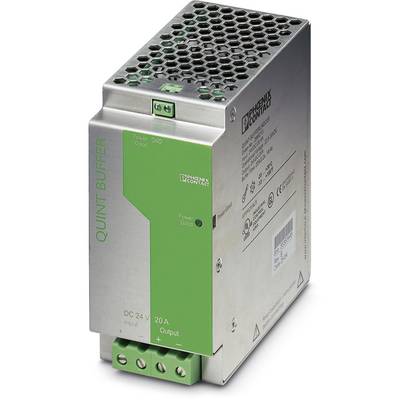

Phoenix Contact QUINT-BUFFER/24DC/20 2866213 Energy storage
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Phoenix Contact QUINT-BUFFER/24DC/20 2866213 Energy storage
- Compact, standardised design saves space
- Integrated diode saves money by decoupling loads
- High equipment availability thanks to optimal battery management and reliable signalling
- Minimal installation required as a result of prefabricated plug jumpers and integrated self-timed cut-off
Technical specifications
- Input voltage
22.5 - 30 V DC
- Product type
Energy storage
- Nominal power
480 W
- No. of outputs
1 x
- Input voltage (max.)
30 V DC
- Min. input voltage
22.5 V DC
- Output voltage (max.)
28.5 V DC
- Output voltage (min.)
22 V DC
- Dim
(W x H x D) 64 x 130 x 125 mm
- Connections
Screw connector
- Output current (details)
20 A
- Weight
1.0 kg
- Width
64 mm
- Height
130 mm
- Depth
125 mm
- Interfaces
none
- Type
QUINT-BUFFER/24DC/20
- Bridging time, max load
0.2 s
- Output voltage
24 V DC
- Max. current
20 A
64
130.05 mm
131.75 mm
Other
TRUE
FALSE
Variants(All information is without VAT, plus shipping costs)
Input voltage
Input voltage (max.)
Nominal power
No. of outputs
Product type
Output voltage (max.)
Min. input voltage
22.5 - 30 V DC
30 V DC
480 W
1 x
Energy storage
28.5 V DC
22.5 V DC
Minimum order quantity: 1
Multiple: 1
€ 461.34*
Phoenix Contact QUINT-BAT/24DC/3.4AH 2866349 Energy storage
24 V DC
24 V DC
Energy storage
24 V DC
Minimum order quantity: 1
Multiple: 1
€ 147.05*
Phoenix Contact QUINT-DC-UPS/24DC/20 2866239 Rail-mount UPS (DIN)
22.5 - 30 V DC
30 V DC
480 W
1 x
Rail-mount UPS (DIN)
24 V DC
22.5 V DC
Minimum order quantity: 1
Multiple: 1
€ 289.92*
Phoenix Contact QUINT-BAT/24DC/7.2AH 2866352 Energy storage
24 V DC
24 V DC
Energy storage
24 V DC
Minimum order quantity: 1
Multiple: 1
€ 189.07*
Documents & Downloads
Datasheet
Datasheet 510752 Phoenix Contact QUINT-BUFFER/24DC/20 2866213 Energy storage
User & Safety Instructions
User & Safety Instructions 510752 Phoenix Contact QUINT-BUFFER/24DC/20 2866213 Energy storage
Description
The uninterruptible power supply QUINT BUFFER ensures secure operation of all 24 V- consumers in all electrical units during line troubles. The energy supply is buffered by an integrated storage capacitor.
