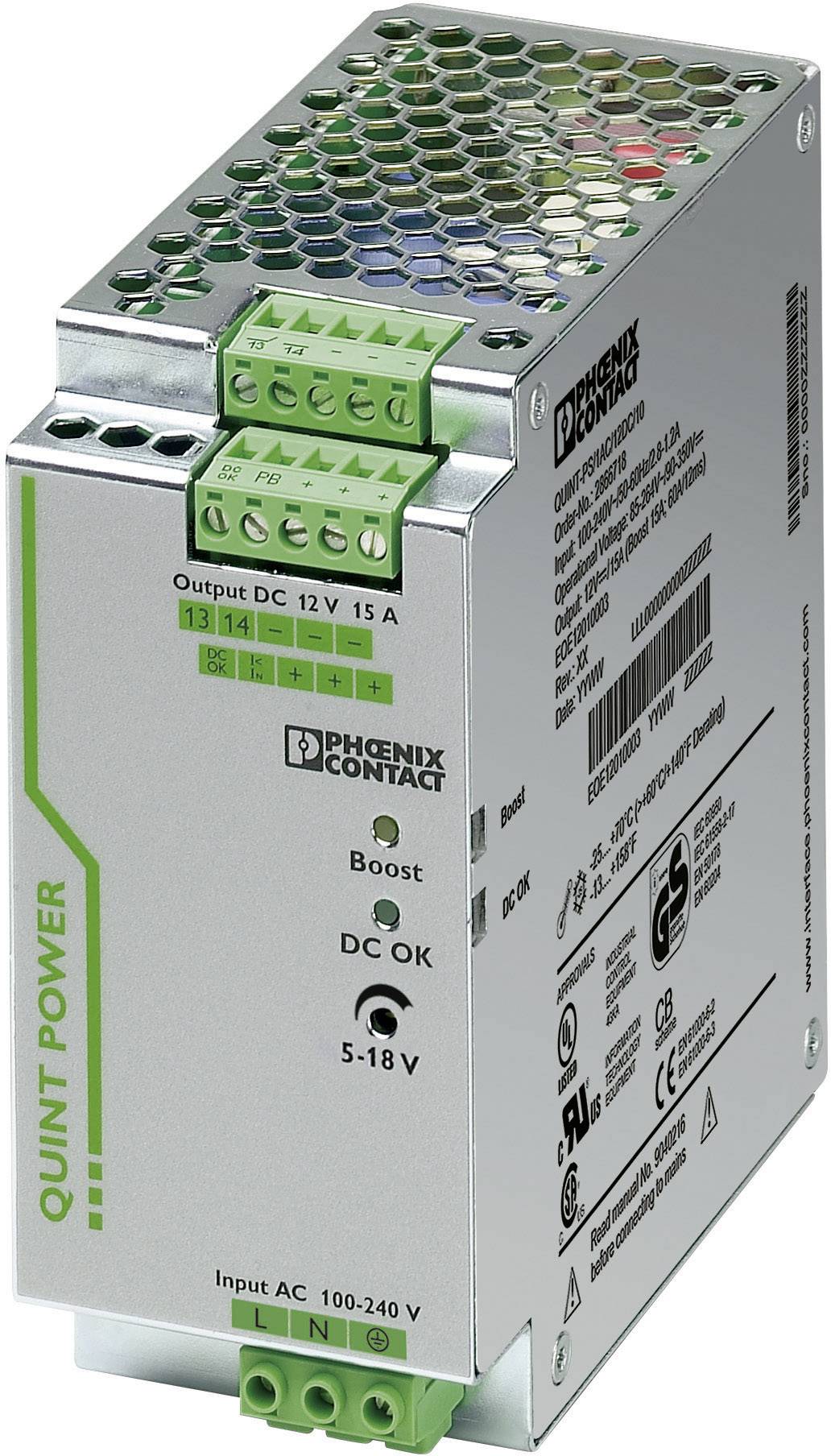

Phoenix Contact 2866718 Rail mounted PSU (DIN) 12 V DC 15 A 180 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 592.44 / piece)
€ 592.44
plus VAT.
14-day return policy included
Phoenix Contact 2866718 Rail mounted PSU (DIN) 12 V DC 15 A 180 W No. of outputs:1 x Content 1 pc(s)
Highlights & Details
- 18 V DC / 15 A
- 180 W
- Input 1 phases
- Input voltage range 85 - 264 Vac, 90 - 350 V DC
- Connection (components): Screw terminal
- Preventive function monitoring
- Power boost - Reliable start of heavy loads
- SFB technology - fast trigger standard circuit breaker
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
90 - 350 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
12 V DC
- Input voltage
85 - 264 Vac, 90 - 350 V DC
- Input voltage (max.)
264 V AC
- Max. output current
15 A
- Output current (max.) - rounded
15 A
180 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 125 x 60 x 130 mm
- Weight
1.1 kg
- Output voltage (max.)
18 V DC
- Output voltage (min.)
5 V DC
- Manufacturer part #
2866718
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
60 mm
- Height
130 mm
- Length
125 mm
- Type
QUINT-PS/1AC/12DC/15
- Depth
125 mm
180 W
- Connections
Screw terminals
- Output current (details)
15 A
60
130 mm
125 mm
130 mm
210 W
FALSE
TRUE
AC/DC
Screw connection
TRUE
IP20
None
None
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 512850 Phoenix Contact 2866718 Rail mounted PSU (DIN) 12 V DC 15 A 180 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 512850 Phoenix Contact 2866718 Rail mounted PSU (DIN) 12 V DC 15 A 180 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 512850 Phoenix Contact 2866718 Rail mounted PSU (DIN) 12 V DC 15 A 180 W No. of outputs:1 x Content 1 pc(s)
Description
The Phoenix Contact QUINT-PS/1AC/12DC/15 with SFB-Technology ensures for highest system availability. with 6-line operating current for 12 ms, the standard-output switch also triggers reliably and fast. The preventive function monitoring indicates critical function status, before error occurrence.
Steady start in heavy load through Power boost. Remote monitoring through active switching output and potential free relais contact. Balancing of voltage cases and charging of battery by adjustable output voltage. High reliability through long mains buffering times> 20 ms Connectors: Screw terminals, including max.10 A service friendly Screw-/pluggable terminals. Efficient operation of 3-phase devices even when a phase permanently fails
Steady start in heavy load through Power boost. Remote monitoring through active switching output and potential free relais contact. Balancing of voltage cases and charging of battery by adjustable output voltage. High reliability through long mains buffering times> 20 ms Connectors: Screw terminals, including max.10 A service friendly Screw-/pluggable terminals. Efficient operation of 3-phase devices even when a phase permanently fails
Features
- Worldwide use of wide-range output and international approval package
- Higher operational safety in long power failure through buffering full load and higher MTBF > 500 000 h
- Parallel switch bar for increased output and redundancy
- Simplified operation by LED fault monitoring
