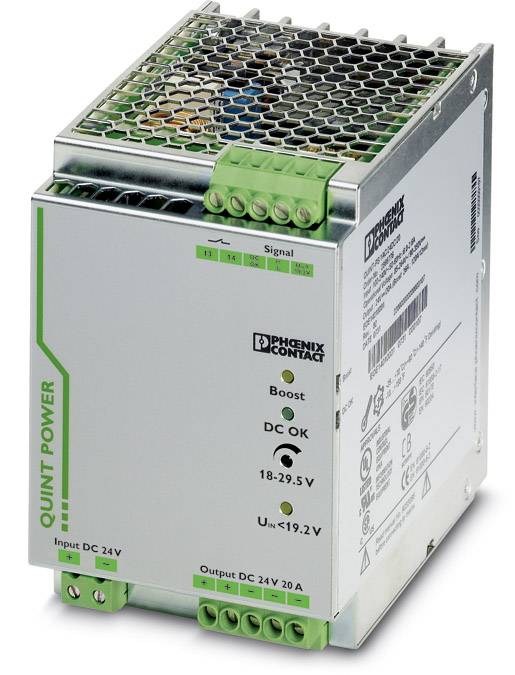

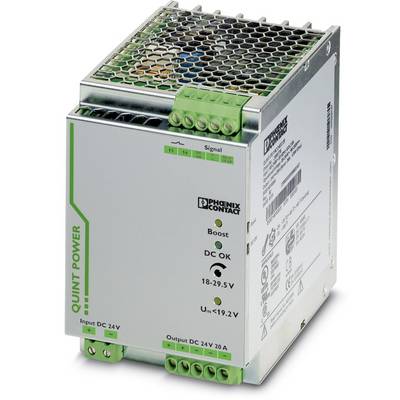

Phoenix Contact 2320102 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 478.15 / piece)
€ 533.61
-10 %
€ 478.15
plus VAT.
14-day return policy included
Highlights & Details
DC/DC converters QUINT-PS/24DC/24DC/20
- 29.5 V DC / 20 A
- 480 W
- Input voltage range 18 - 32 V DC
- Connection (components): Screw terminal
- SFB technology
Technical specifications
- Nominal input voltage
24 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
18 V DC
- Output voltage
24 V DC
- Input voltage
18 - 32 V DC
- Input voltage (max.)
32 V DC
- Max. output current
20 A
- Output current (max.) - rounded
20 A
480 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 48 x 130 x 125 mm
- Weight
0.9 kg
- Output voltage (max.)
29.5 V DC
- Output voltage (min.)
18 V DC
- Operating temperature (max.)
60 °C
- Max. operating temperature (derating)
60 °C
- Manufacturer part #
2320102
- Content
1 pc(s)
- MTBF
500000 h
- PSU features
Adjustable voltage output
- Width
48 mm
- Height
130 mm
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type
QUINT-PS/24DC/24DC/20
- Depth
125 mm
- Connections
Screw terminals
- Output current (details)
20 A
82
130 mm
125 mm
130 mm
FALSE
DC
Screw connection
TRUE
IP20
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 125718 Phoenix Contact 2320102 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 125718 Phoenix Contact 2320102 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)
Description
Primary-switched QUINT DC/DC converter for DIN rail mounting, input: 24 V DC, output: 24 V DC/20 A, with integrated SFB (selective fuse breaking) technology, including mounted universal DIN rail adapter UTA 107
Features
- Adjustable output voltage:
- Derating from 60°C
- Switchable SFB function for fast triggering of standard circuit breakers
- Status LED displays.
