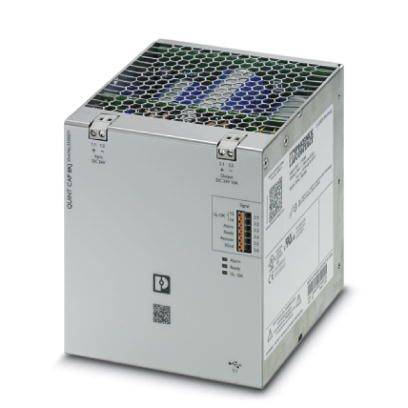

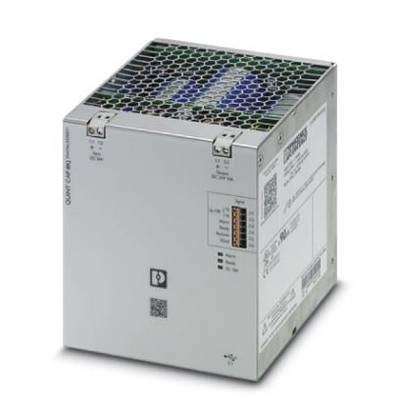

Phoenix Contact QUINT4-CAP/24DC/10/8KJ 2320571 Energy storage
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C (> 40 °C DERATING 1 %/K)
- Max. Permissible Humidity (Operating): ≤ 95%
- Climate class: 3K3 (according to EN 60721)
- Pollution level: 2
- Installation height ≤ 4000 m.
- Product type
Energy storage
- Input voltage (max.)
30 V DC
- Min. input voltage
22.5 V DC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Dim
(W x H x D) 118 x 130 x 125 mm
- Rechargeable battery capacity (details)
8 kJ
- Output current (details)
10 A
- Weight
1.6 kg
- Width
118 mm
- Height
130 mm
- Depth
125 mm
- Interfaces
USB
- Type
QUINT4-CAP/24DC/10/8KJ
- Features
Capacitive energy storage
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209720 Phoenix Contact QUINT4-CAP/24DC/10/8KJ 2320571 Energy storage
Datasheet 2209720 Phoenix Contact QUINT4-CAP/24DC/10/8KJ 2320571 Energy storage
User & Safety Instructions
User & Safety Instructions 2209720 Phoenix Contact QUINT4-CAP/24DC/10/8KJ 2320571 Energy storage
Description
Convenient shutdown of PCs. Maintenance-free with long service life. Space saving through compact design. Long buffer time due to high storage capacities. Lockable USB interface for connection to e.g. Industrial PCs.
