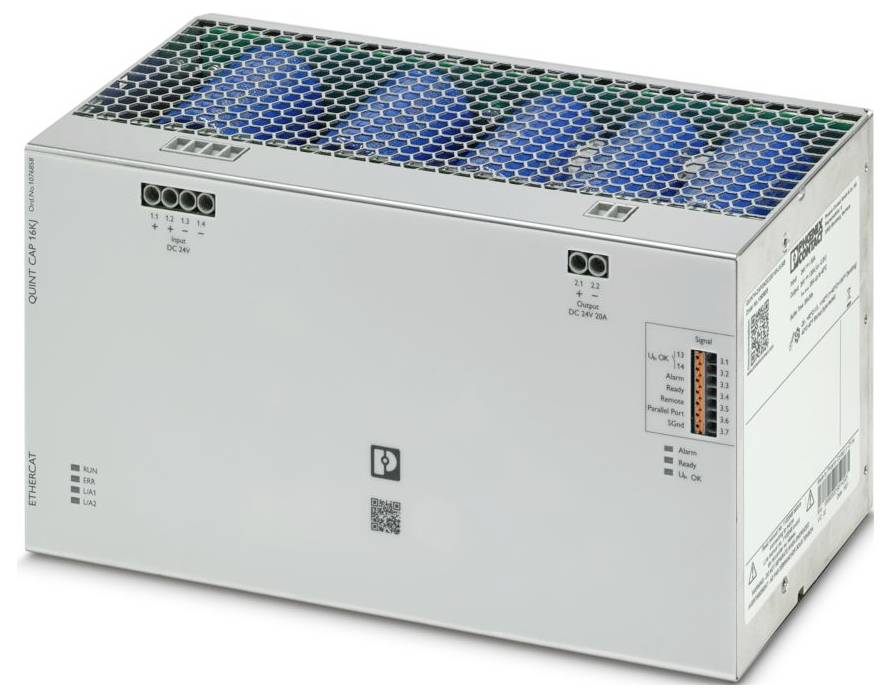

Phoenix Contact QUINT4-CAP/24DC/20/16KJ/EC 1076858 Energy storage
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Output voltage 24-24 V
- Input connector: Other
- With RS-232 communication interface: No.
- SNMP: No.
- Voltage type DC
- USB interface: No.
- Product type
Energy storage
- No. of outputs
1 x
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Dim
(W x H x D) 244 x 130 x 125 mm
- Rechargeable battery capacity (details)
16 kJ
- Weight
2.856 kg
- Width
244 mm
- Height
130 mm
- Depth
125 mm
- Type
QUINT4-CAP/24DC/20/16KJ/EC
- Input voltage
22.5-30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562929 Phoenix Contact QUINT4-CAP/24DC/20/16KJ/EC 1076858 Energy storage
User & Safety Instructions
User & Safety Instructions 3562929 Phoenix Contact QUINT4-CAP/24DC/20/16KJ/EC 1076858 Energy storage
Description
Quint capacity module, with maintenance-free energy storage based on double-layer capacitors, mounting rail, input: 24 V DC, output: 24 V DC / 20 A / 16 kJ incl. mounted universal-mounting rail adapter UTA 107
