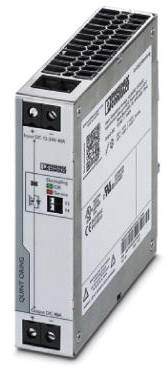

Phoenix Contact QUINT4-S-ORING/12-24DC/1X40/+ 2907753 Redundancy module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

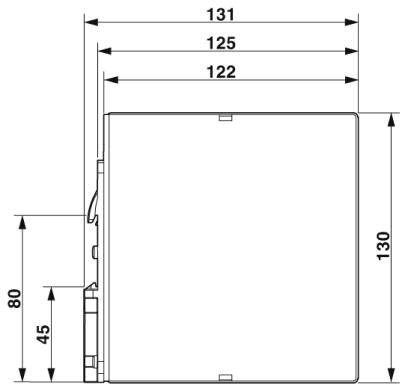

- Width for alternative mounting: 122 mm
- Height for alternative mounting: 130 mm
- Depth for alternative mounting: 35 mm
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C (> 60 °C DERATING 2.5 %/K)
- Max. Permissible Humidity (Operating): ≤ 100% (at 25 °C, no condensation)
- Climate class: 3K3 (according to EN 60721)
- Pollution level: 2

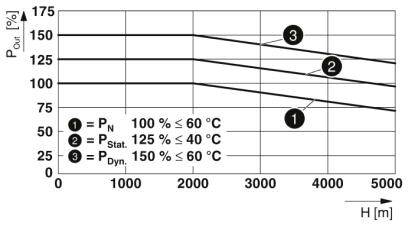

- Installation height: ≤ 5000 m (> 2000 m, observe derating)
- Product type
Redundancy module
- Input voltage (max.)
26 V DC
- Min. input voltage
8 V DC
- Output voltage (max.)
26 V DC
- Output voltage (min.)
8 V DC
- Dim

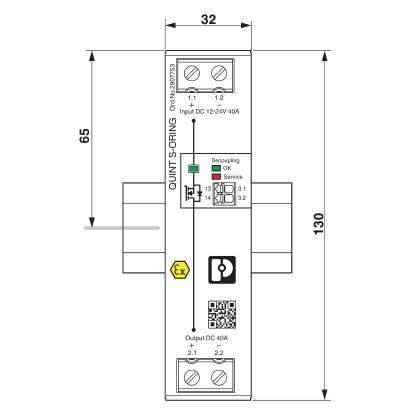

(W x H x D) 32 x 130 x 125 mm
- Output current (details)
40 A
- Input current
40 A
- Weight
0.4 kg
- Width
32 mm
- Height
130 mm
- Depth
125 mm
- Type
QUINT4-S-ORING/12-24DC/1X40/+
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2137230 Phoenix Contact QUINT4-S-ORING/12-24DC/1X40/+ 2907753 Redundancy module
User & Safety Instructions
User & Safety Instructions 2137230 Phoenix Contact QUINT4-S-ORING/12-24DC/1X40/+ 2907753 Redundancy module
Description

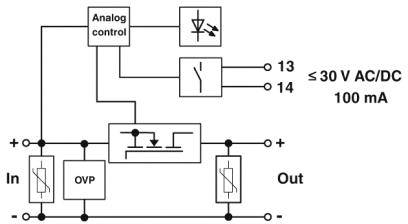

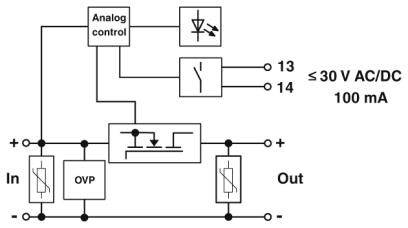

End-to-end redundancy up to the consumer. Permanent monitoring of input voltage and decoupling line. Save energy by decoupling with MOSFET. Protection against overvoltages at the output of over 30 V DC.
