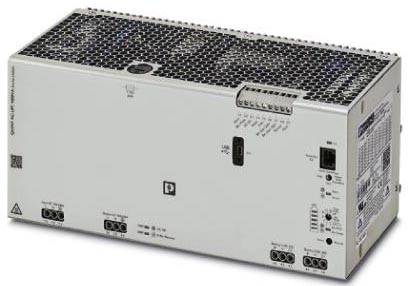

Phoenix Contact QUINT4-UPS/1AC/1AC/1KVA 2320283 UPS
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C (> 50 °C DERATING 2.5 %/K)
- Max. Permissible Humidity (Operating): ≤ 95%
- Climate class: 3K3 (EN 60721)
- Pollution level: 2
- Installation height: ≤ 3000 m (> 2000 m, observe derating)
- Product type
UPS
- Nominal power
1000 VA
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Output voltage (max.)
240 V AC
- Output voltage (min.)
100 V AC
- Dim
(W x H x D) 290 x 130 x 125 mm
- Output current (details)
8.3 A
- Weight
5 kg
- Width
290 mm
- Height
130 mm
- Depth
125 mm
- Interfaces
USB
- Type
QUINT4-UPS/1AC/1AC/1KVA
- Features
USB port
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209714 Phoenix Contact QUINT4-UPS/1AC/1AC/1KVA 2320283 UPS
Datasheet 2209714 Phoenix Contact QUINT4-UPS/1AC/1AC/1KVA 2320283 UPS
User & Safety Instructions
User & Safety Instructions 2209714 Phoenix Contact QUINT4-UPS/1AC/1AC/1KVA 2320283 UPS
Description
Smooth transition through online topology. Pure sine wave in mains and battery mode. USB interface for connecting to e.g. Industrial PCs. Starting from the energy storage is also possible without an input network. Can be switched in parallel for redundancy and increased power.
