Buy Phoenix Contact RAD-DI8-IFS 2901539 I/O expansion module

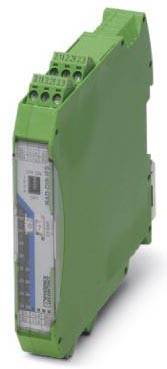

A green electronic module with multiple terminal blocks on top, likely part of an industrial protection system or control unit.

Image similar

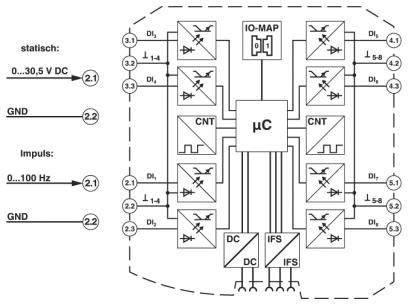

'Schematic diagram of a microcontroller circuit with inputs and outputs for voltage (0...30.5 V DC), pulse (0...100 Hz) and earth/ground (GND).'

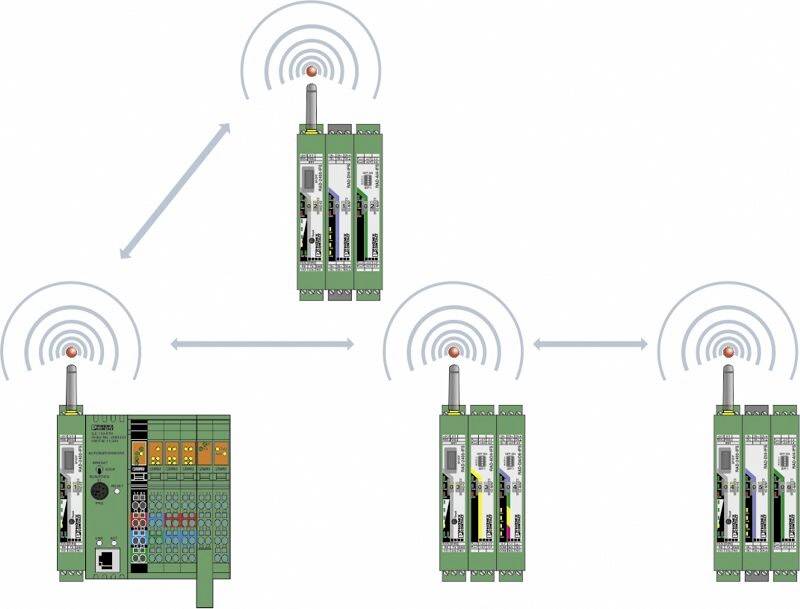

Several green electronic devices are interconnected via radio waves emanating from antennas. One device has additional colourful ports.

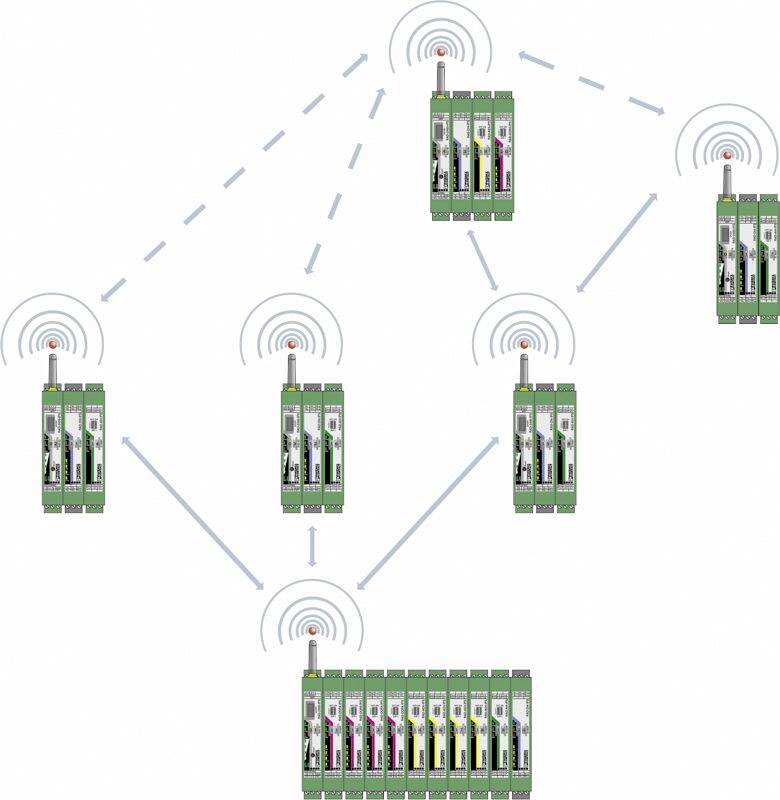

The image depicts a wireless network of communication devices. Arrows connect the devices and indicate the flow of information.

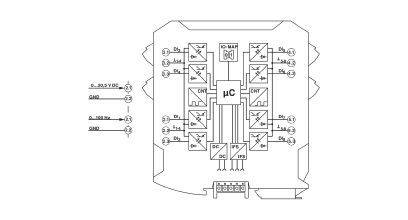

Circuit diagram with electronic components, connections, and labels for a microcontroller. Shows input and output pathways.

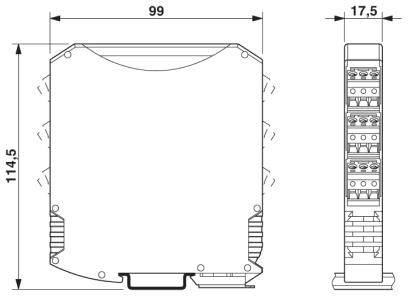

Technical drawing of a device with dimensions of 99 mm width and 114.5 mm height. The side view shows a width of 17.5 mm.

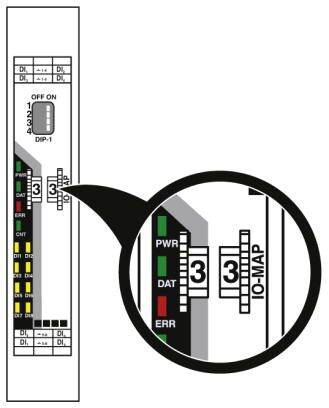

'Diagram of an I/O module with a focus on the DIP switch and the power, data, and error indicator lights (PWR, DAT, and ERR).'

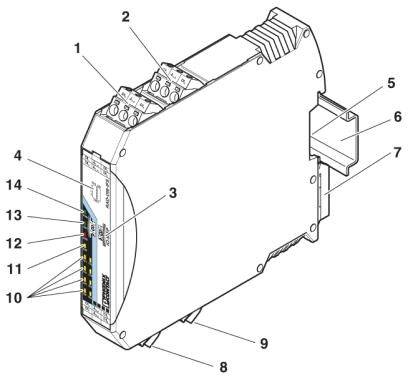

Electronic device with numbered ports and components. Perfect for use in industrial control systems.<br><br>Note: The translation was already quite close to British English, so minimal changes were needed.

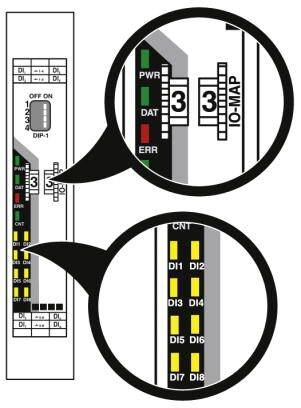

A diagram shows enlarged views of an electronic device. At the top, the PWR, DAT, and ER LEDs are depicted. Below, the DI1 to DI8 connections are marked.

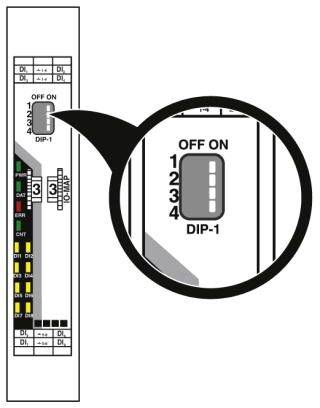

'Illustration of a DIP switch with four switches, second and third switches are set to ON.'

1/10

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Description of the input: Digital input
Number of inputs: 8
Status display: Green LED (supply voltage, PWR)
All mounting positions permitted
Mounting instructions: On standard rail NS 35 according to EN 60715
Wire stripping length: 7 mm
Screw thread: M3
Pollution level: 2
Overvoltage category II
Conductor cross-section rigid Min: 0.2 mm²
Conductor cross-section rigid max. 2.5 mm²
Conductor cross-section flexible min.: 0.2 mm²
Conductor cross-section flexible max.: 2.5 mm²
Conductor cross-section AWG min: 24
Conductor cross-section AWG max. 14

Product type: I/O expansion module

Type: RAD-DI8-IFS

Min. operating voltage: 19.2 V DC

Operating voltage: 19.2 - 30.5 V DC

Max. operating voltage: 30.5 V DC

Height: 113 mm

Length: 114.5 mm

Width: 17.5 mm

: IP20

Dim: (L x W x H) 114.5 x 17.5 x 113 mm

Connection: Screw connection

Manufacturer part #: 2901539

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225445 Phoenix Contact RAD-DI8-IFS 2901539 I/O expansion module

User & Safety Instructions

User & Safety Instructions 2225445 Phoenix Contact RAD-DI8-IFS 2901539 I/O expansion module

Description

Extended temperature range -40 °C ... +70 °C. Simple module exchange even during operation (hot-swap). 8 digital inputs (0 ... 30.5 V DC). 2 pulse inputs (0...100 Hz). Simple operation via knurled wheel.
