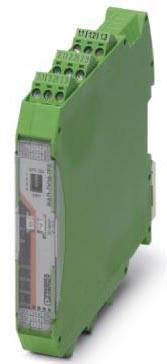

Buy Phoenix Contact RAD-DO8-IFS 2902811 I/O expansion module

A green electronic circuit component with connection terminals and a labelled front panel, used in industrial applications.

Image similar

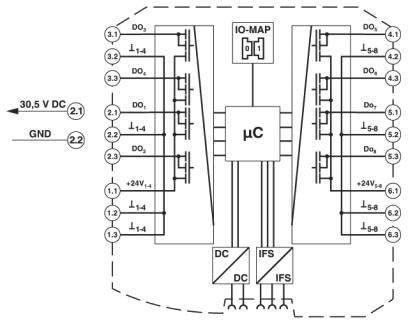

Circuit diagram of a microcontroller connection, showing inputs and outputs (D0–D3), power supply (30.5 V DC), and earth (GND).

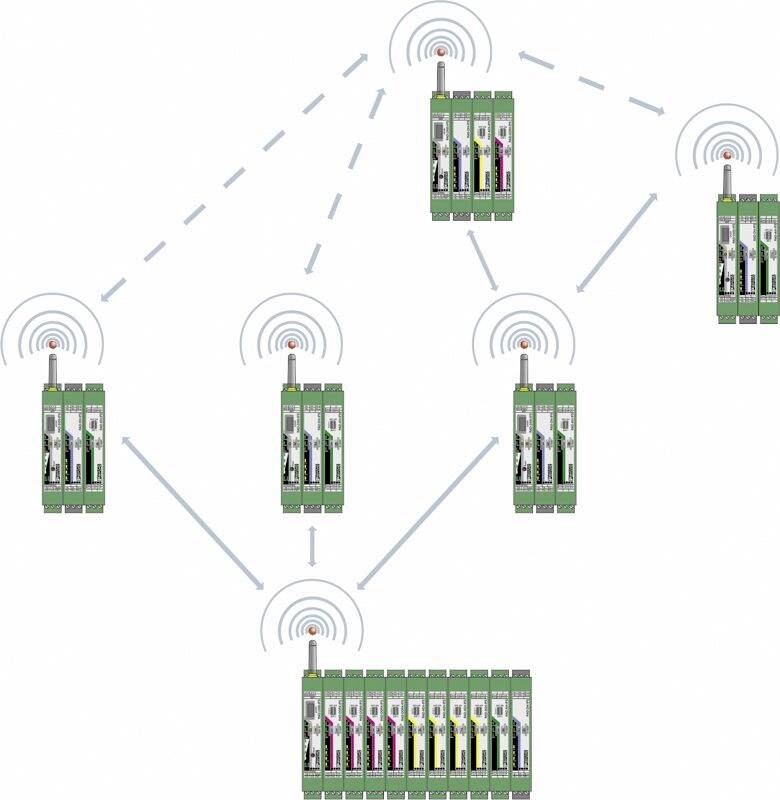

Diagram of a wireless network configuration with five connected devices, represented by green hardware components with antennas.

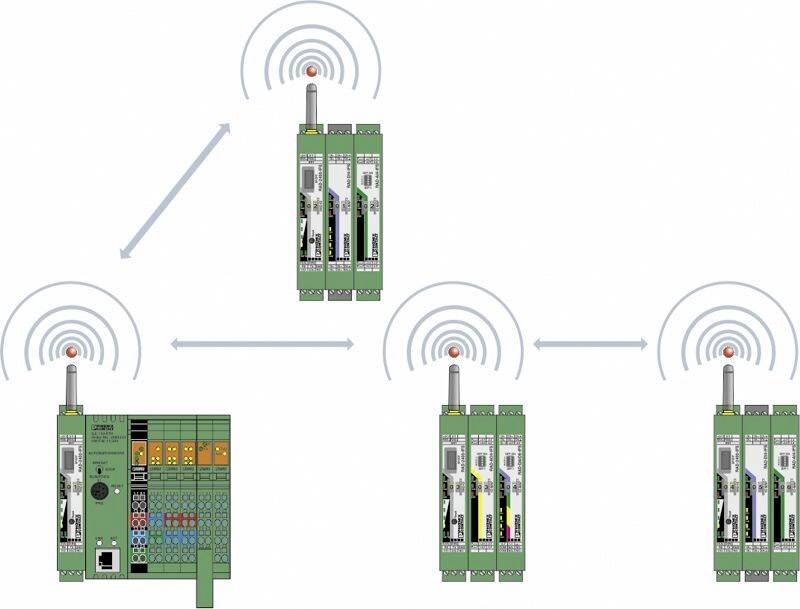

'Diagram shows four green control devices in a network, connected by arrows and radio waves, symbolising wireless communication.'

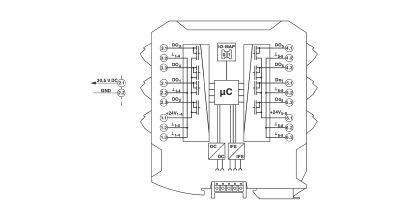

Schematic diagram of a microcontroller with various connections. Shows the pin assignment and connections to external components.

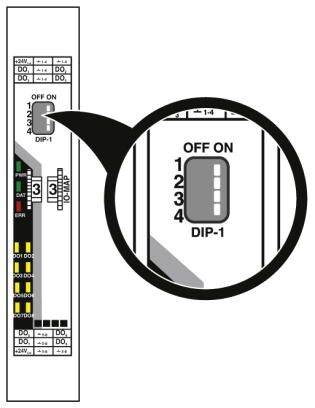

Close-up of a circuit diagram with a DIP switch. The DIP switch has four settings, labelled '1' to '4', and can be switched to 'ON' or 'OFF'.

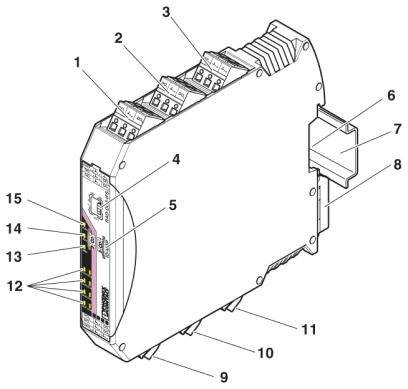

Device Diagram with 15 Numbered Components on an Electronic Module Used in a Technical or Industrial Context

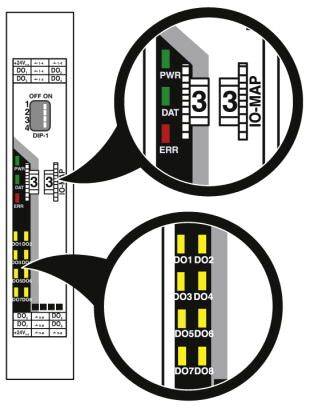

'Illustration of an IO map module with two magnification zones, showing the data and status LEDs and the connections D0 to D08.'

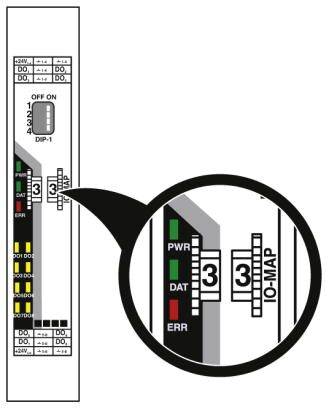

Enlarged view of a switch on an I/O module with labels 'PWR', 'DAT', and 'ERR' in red and green.

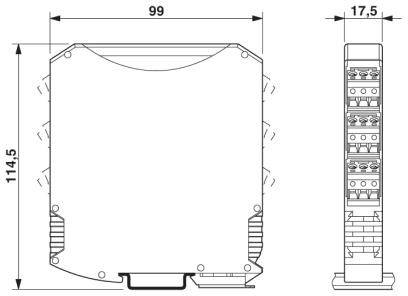

Technical drawing of a rectangular electronic device with dimensions: width 99 mm, height 114.5 mm, depth 17.5 mm.

1/10

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Status display: Green LED (supply voltage, PWR)
Number of outputs: 8
All mounting positions permitted
Mounting instructions: On standard rail NS 35 according to EN 60715
Wire stripping length: 7 mm
Screw thread: M3
Pollution level: 2
Overvoltage category II
Conductor cross-section rigid Min: 0.2 mm²
Conductor cross-section rigid max. 2.5 mm²
Conductor cross-section flexible min.: 0.2 mm²
Conductor cross-section flexible max.: 2.5 mm²
Conductor cross-section AWG min: 24
Conductor cross-section AWG max. 14

Product type: I/O expansion module

Type: RAD-DO8-IFS

No. of outputs (max.): 8

Output signal current: 250 mA

Max. output current per channel: 250 mA

Min. operating voltage: 19.2 V DC

Operating voltage: 19.2 - 30.5 V DC

Max. operating voltage: 30.5 V DC

Output signal voltage: 30.5 V

Height: 113 mm

Length: 114.5 mm

Width: 17.5 mm

: IP20

Dim: (L x W x H) 114.5 x 17.5 x 113 mm

Connection method: Screw terminals

Connection: Screw connection

Manufacturer part #: 2902811

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

No. of transistor outputs (max.): 8

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225469 Phoenix Contact RAD-DO8-IFS 2902811 I/O expansion module

User & Safety Instructions

User & Safety Instructions 2225469 Phoenix Contact RAD-DO8-IFS 2902811 I/O expansion module

Description

Extended temperature range -40 °C ... +70 °C. Simple module exchange even during operation (hot-swap). 8 transistor outputs (30.5 V DC / 250 mA). Simple operation via knurled wheel.
