Buy Phoenix Contact SCK-C-MODBUS-10PCS PV string monitor

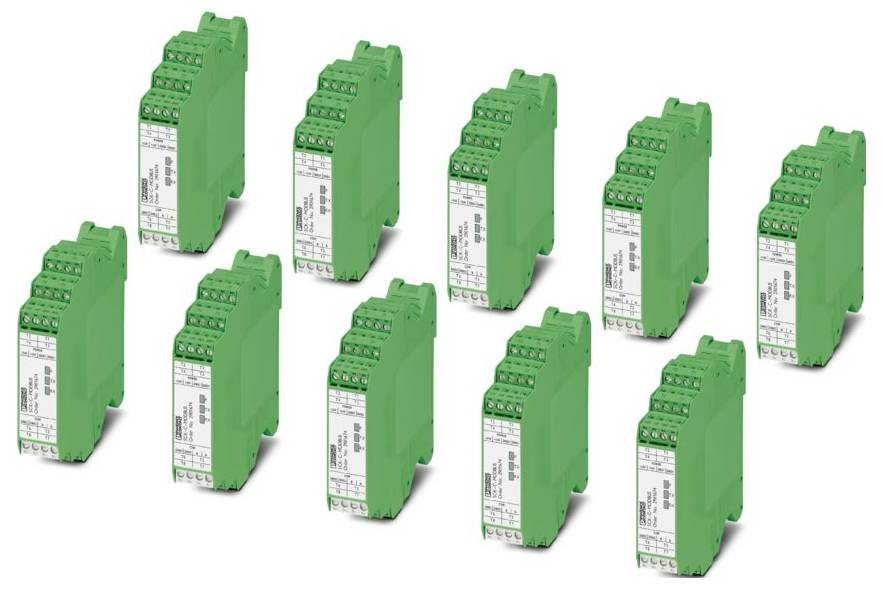

A group of ten identical green signal relays arranged in two rows. Each relay has a label detailing technical specifications.

Image similar

Product type

PV string monitor

Manufacturer part #

1084335

Dim

(W x H x D) 22.5 x 102 x 106 mm

Operating voltage

24 V DC

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

SOLARCHECK family
Type of connection: Screw terminal
Tightening torque: 0.5 Nm ... 0.6 Nm
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
Wire cross-section AWG: 24 ... 12
Width 22.5 mm
Height: 102 mm
Depth: 106 mm
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -20 °C ... 70 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude: ≤ 2000 m.
Standards/regulations EN 61010-1;EN 61010-2-30
Note: Small deviations may occur during interference.
Mounting type: Rail: 35 mm; mounting rail assembly
Insulation properties: Insulation properties
Pollution level: 2
Permissible humidity (operating): ≤ 95% (no condensation)
All mounting positions permitted
Identification: 508 Listed
UL, USA / Canada: UL, USA / Canada
Maximum power loss at rated conditions 0.65 W.
Transfer length ≤ 1200 m
Supply voltage range: 21.6 V DC ... 30 V DC
CE CE
Connection technology: 2, 3 conductors
Mounting instructions: Horizontal or vertical
Electromagnetic compatibility: Conformity to EMC directive
Low-voltage directive: Conformity to the NS directive
Interference radiation: Interference radiation
Protection circuit: Overvoltage protection | 33 V suppressor diode
Immunity speed EN 61000-6-2
Supported protocols: Proprietary
180 Ω terminating resistor (not included)
Supply: Supply
Power consumption maximum 800 mA
UL, USA: UL, USA
Rated supply voltage: 24 V DC -10 % ... +25 %
Power consumption 580 mW (24 V DC)
Internal power consumption: 22 mA (typical);45 mA (maximum)
Serial transfer rate 9.6/ 14.4/ 19.2/ 38.4 kBit/s.
Data: Modbus/RTU: Data: Modbus/RTU
Data: Data interface to measurement module or supplementary module: Data: Data interface to measurement module or supplementary module
