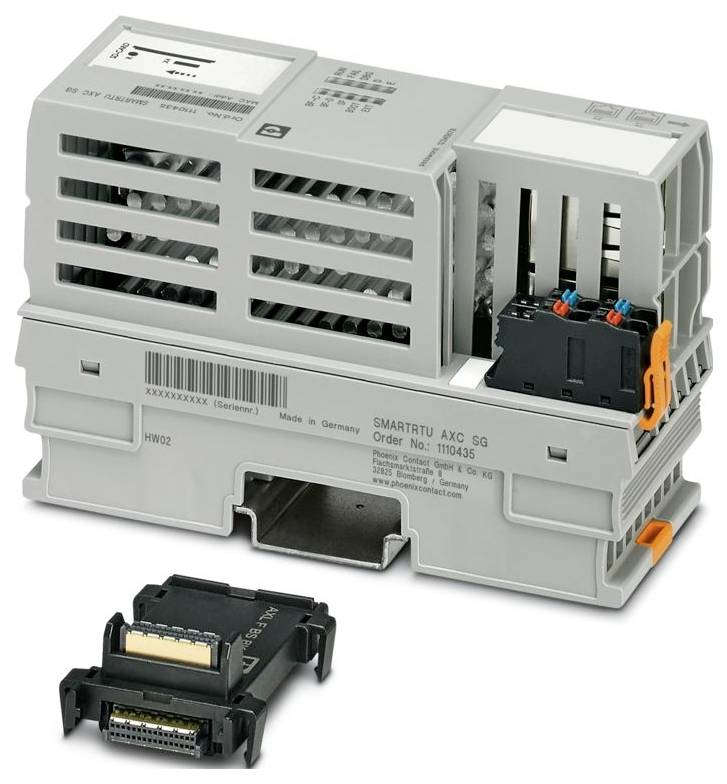

Phoenix Contact SMARTRTU AXC SG 1110435 Remote control 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Axioline F product family
- RJ45 socket connection
- Width 45 mm
- Height: 126.93 mm
- Depth: 75 mm
- Colour: grey
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C to 2000 m üNN (observe derating);-25 °C ... 55 °C to 3000 m üNN (observe derating);≤ 55 °C (at max. 1 A at UBus);> 55 °C ... 60 °C (only in conjunction with an Axioline F-refill module AXL F PWR 1H (no. 2688297)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Permissible air humidity (operation): 5 % ... 95 % (according to DIN EN 61131-2)
- Shock (Operation): 10g (Continuous Shock Test in accordance with DIN EN 60068-2-27)
- Vibration (operation): 5g
- Transmission speed 10/100 MBit/s (full duplex)
- Maximum power loss at rated conditions: Max. 10.6 W.
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- Number of interfaces: 2
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m üNN)
- Ethernet: Ethernet
- Bus system RJ45
- Supply voltage range: 19.2 V DC ... 30 V DC
- Permissible humidity (storage/transport): 5 % ... 95 % (according to DIN EN 61131-2)
- Note for application: Only for industrial use
- Ripple ± 5 %
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Supported protocols: HTTP, HTTPS, SFTP, SNTP client / server, SNMP, IPsec, syslog, IEC 60870-5-101 Master/slave (via additional serial communication modules) ;IEC 60870-5-103 Master (via additional serial communication modules);Modbus RTU Master (via additional serial communication modules);IEC 60870-5-104 client / server ;Modbus TCP client;IEC 61850 MMS + GOOSE
- Transfer Physics: Ethernet in RJ45-Twisted-Pair
- Supply: Supply
- Air pressure (storage/transport): 58 kPa ... 106 kPa (up to 4500 m üNN)
- Typical current consumption 200 mA
- Power consumption maximum 442 mA
- Note on connection type: Auto negotiation and auto crossing
- Number of channels: 2
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- Note on dimensions: The depth applies when using a TH 35-7.5 mounting rail (according to EN 60715).
- Supply voltage 24 V DC
- Axioline F-Local bus: Axioline F-Local bus
- Conformity to EMC guidelines: Testing the immunity to EN 61000-6-2/IEC 2 ESD discharge static electricity (ESD)EN 61000-6-2- 61000-2/IEC 61000-4-2 Criterion B, ±6 kV contact discharge , ±8 kV air discharge;Testing of immunity according to EN 61000-6-61000-6-2/IEC 61000 Electromagnetic fields EN 4-4-3/IEC 61000-4-3 Criterion A, field strength: 10 ± 6 61000 61000-6-4 V/m;immunity testing to EN±0.5 ±6 61000 61000-4-6 6-6 4 10 4-61000/IEC 5 fast transients (burst)EN 1-0.5-61000-6-2/IEC 61000-4-5 Criterion B, ±4 kV;Immunity testing according to EN 61000-61000-2/IEC 4 transient overvoltage (surge)EN 6-2-61000-6-2-4-61000-61000-4-4/IEC 61000-2/IEC 2-61000-6-2-V Test Voltage
- Product type
Remote control
- Interfaces
RJ45
- Operating voltage
24 V DC
- Height
126.93 mm
- Length
75 mm
- Width
45 mm
IP20
- Dim
(L x W x H) 75 x 45 x 126.93 mm
- Manufacturer part #
1110435
- Type
SMARTRTU AXC SG
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
- Depth
75 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564321 Phoenix Contact SMARTRTU AXC SG 1110435 Remote control 24 V DC
User & Safety Instructions
User & Safety Instructions 3564321 Phoenix Contact SMARTRTU AXC SG 1110435 Remote control 24 V DC
Description
Remote control unit, Axioline F, 2x Ethernet.
