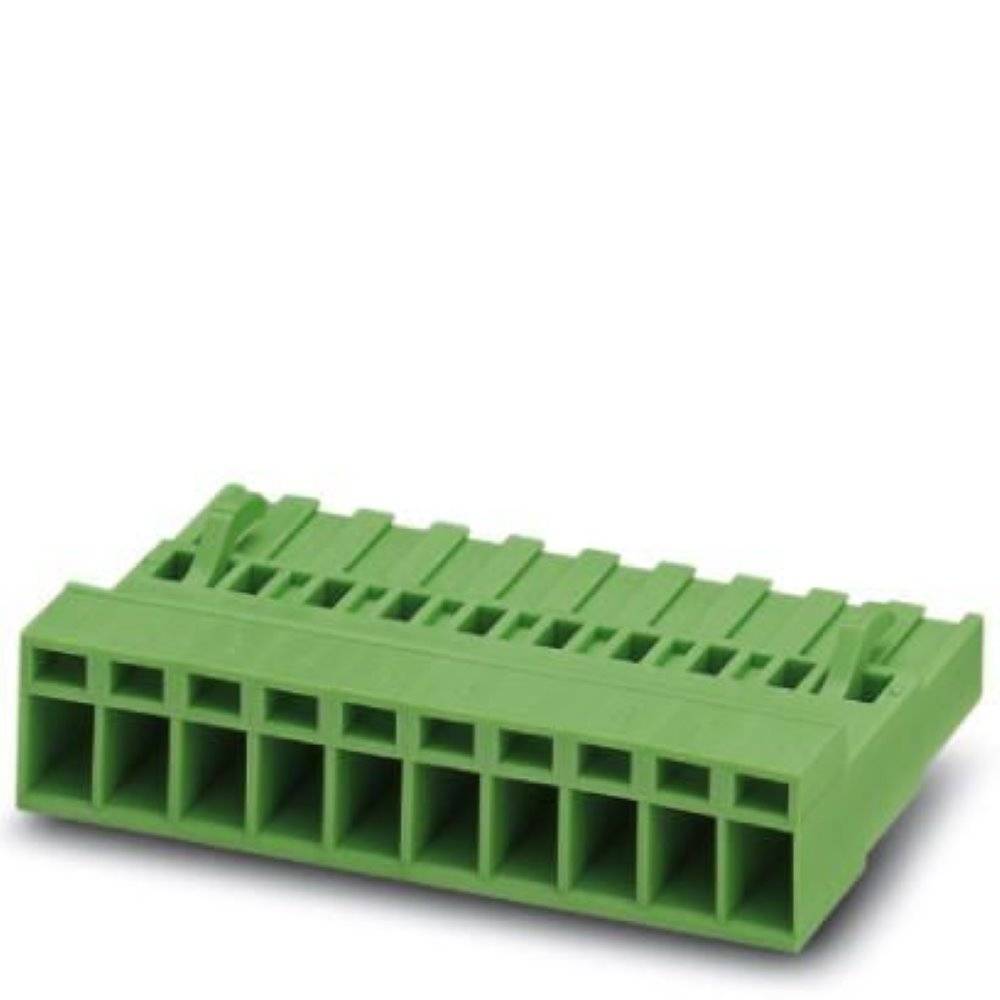

Image similar
Image similar
Phoenix Contact Socket housing cable MSTBC Total number of pins 2 Contact spacing: 5.08 mm 1809501 50 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
MSTBC
CS
5.08 mm
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 50 pc(s))
Total (€ 0.35 / piece)
€ 17.64
plus VAT.
14-day return policy included
Highlights & Details
Printed-circuit board connector MSTBC 2,5/ 2-STZ-5,08
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 2
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
MSTBC
- Features
+ screw lock
- CS
5.08 mm
- Pins per row
2
- Total number of pins
2
- Width
25.00 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
50 pc(s)
- AWG max.
14
- AWG (min.)
20
- Dim
(L x W x H) 10.12 x 25.00 x 10.50 mm
- Connection
Crimp
- Manufacturer part #
1809501
- Factory colour
Green
- Industrial packaging
Yes
- Connector contact surface
Tin plated
- Nominal voltage
320 V
- Height
10.50 mm
- Length
10.12 mm
- Type
MSTBC 2,5/ 2-STZ-5,08
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566636 Phoenix Contact Socket housing cable MSTBC Total number of pins 2 Contact spacing: 5.08 mm 1809501 50 pc(s)
User & Safety Instructions
User & Safety Instructions 566636 Phoenix Contact Socket housing cable MSTBC Total number of pins 2 Contact spacing: 5.08 mm 1809501 50 pc(s)
Description
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 2, Pitch: 5.08 mm, Connection method: Crimp connection, Color: green, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 10A/MSTBC-MT 0,5-1,0 (3190564); 10A/MSTBC-MT 0,5-1,0 BA (3190645); 12A/MSTBC-MT 1,5-2,5 (3190551); 12A/MSTBC-MT 1,5-2,5 BA (3190658). BA = Bandkontakte
