Yellow DIN rail socket with earth connection, suitable for installation in control cabinets.

Image similar

Yellow DIN rail socket with earth connection, suitable for installation in control cabinets.

Grey-white socket for DIN rail mounting with three orange screw terminals below, suitable for industrial applications.

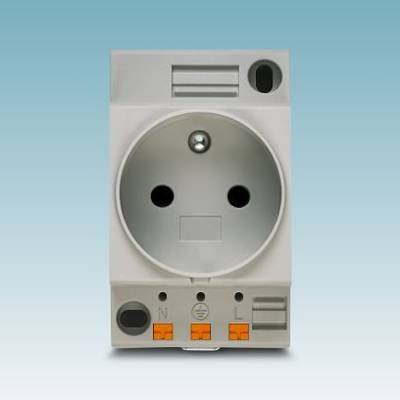

Socket in a white housing for mounting on a DIN rail. Bottom left are terminals labelled 'N', 'L' and earth.

Socket mounted on a DIN rail, showing three marked connection points below with 'L1', 'N' and earth symbol.

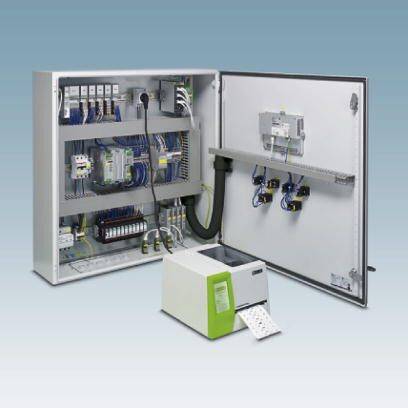

An open electrical cabinet with visible cables and devices, beside a printer outputting diagrams or labels.

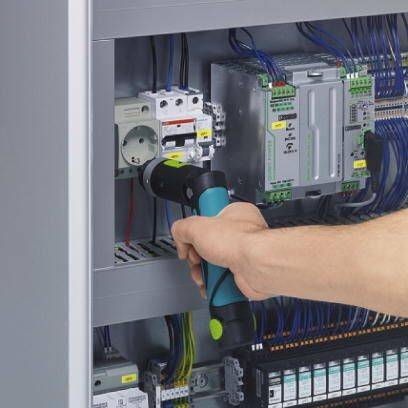

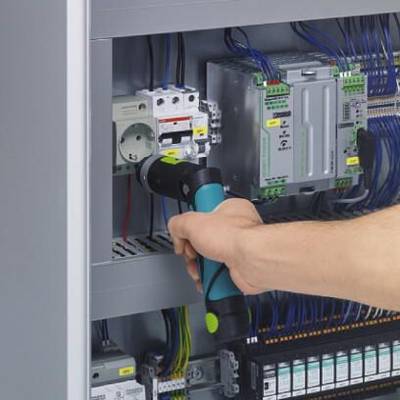

A person is testing electrical circuits using a device in an open electrical cabinet. Several cables and switches are visible.

Socket mounted on a DIN rail, with a control unit beneath it. Suitable for integration into electronic control systems.

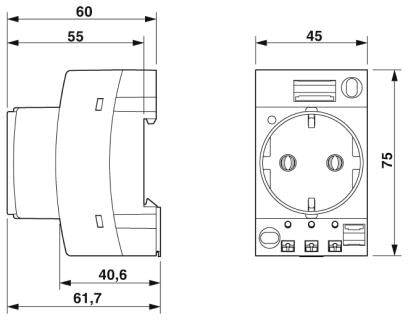

Technical drawing of a socket with dimensions: 61.7 mm depth, 60 mm width, 75 mm height. Shows front and side view.

1/8

Image similar

Product type

Socket

Energy efficiency rating

n.rel.

Type

EO-CF/PT/YE

Factory colour

Yellow

Connection

Box

Datasheet (PDF)

European union

Phoenix Contact

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (operation): -20 °C - +60 °C.
Wire cross-section AWG: 24 - 12
Status indicator: no.

Product type: Socket

Type: EO-CF/PT/YE

Factory colour: Yellow

Connection: Box

Material: Brass
PA

Min. temperature: -20 °C

Max. temperature: 60 °C

Length: 60 mm

Width: 45 mm

Height: 75 mm

Dim: (L x W x H) 60 x 45 x 75 mm

: n.rel.

Mounting type: DIN rail

Core cross section (max.): 4 mm²

Core cross section (min.): 0.2 mm²

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2209089 Phoenix Contact Socket EO-CF/PT/YE Yellow (L x W x H) 60 x 45 x 75 mm 5 pc(s)

Datasheet 2209089 Phoenix Contact Socket EO-CF/PT/YE Yellow (L x W x H) 60 x 45 x 75 mm 5 pc(s)

User & Safety Instructions

User & Safety Instructions 2209089 Phoenix Contact Socket EO-CF/PT/YE Yellow (L x W x H) 60 x 45 x 75 mm 5 pc(s)

Description

Socket, plug face type CF, yellow, for mounting on mounting rail in service interface or direct mounting, -20 °C, 60 °C, VDE 0620-1

This text is machine translated.
