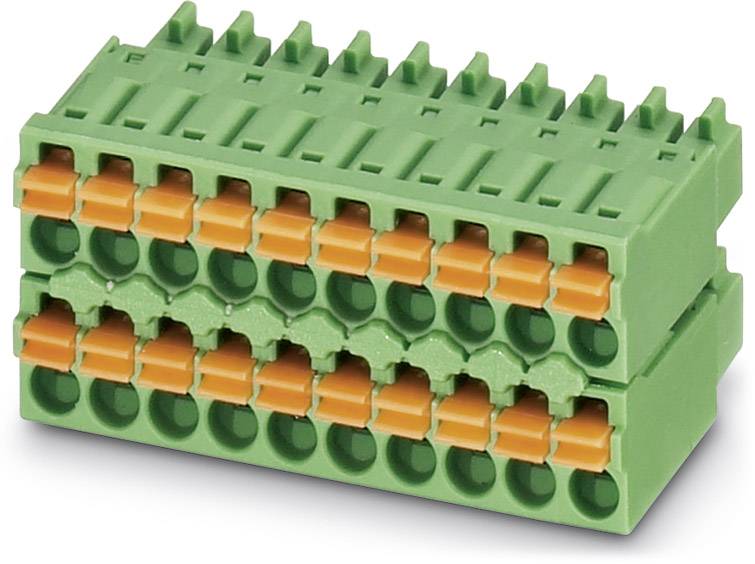

Image similar

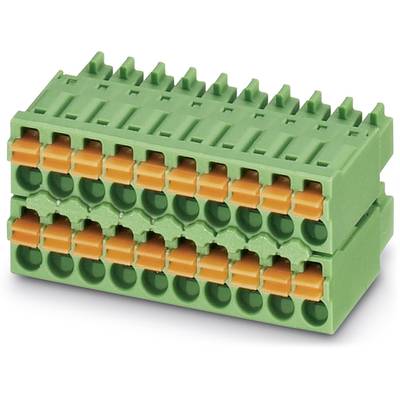

Image similar
Phoenix Contact Socket housing cable FKC Total number of pins 10 Contact spacing: 5.08 mm 1741830 50 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
FKC
CS
5.08 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 5.36 / piece)
€ 268.07
plus VAT.
Only 3 Set(s) available
Highlights & Details
Printed-circuit board connector FKC 2,5/10-ST-5,08 BD:1-10
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 10
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
FKC
- Features
+ push-in spring bracket
- CS
5.08 mm
- Pins per row
10
- Total number of pins
10
- Width
51.42 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
50 pc(s)
- AWG max.
12
- AWG (min.)
24
- Stripping length (max.)
10.00 mm
- Dim
(L x W x H) 15.00 x 51.42 x 25.60 mm
- Connection
Spring-loaded terminal
Plug
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1741830
- Factory colour
Green
- Industrial packaging
Yes
- Contact material
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
250 V
- Height
25.60 mm
- Length
15.00 mm
- max. cross section
2.5 mm²
- Min. cross section
0.2 mm²
- Type
FKC 2,5/10-ST-5,08 BD:1-10
Documents & Downloads
Datasheet
Datasheet 567540 Phoenix Contact Socket housing cable FKC Total number of pins 10 Contact spacing: 5.08 mm 1741830 50 pc(s)
User & Safety Instructions
User & Safety Instructions 567540 Phoenix Contact Socket housing cable FKC Total number of pins 10 Contact spacing: 5.08 mm 1741830 50 pc(s)
Description
Plug component, Nominal current: 12 A, Number of positions: 10, Pitch: 5.08 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin
