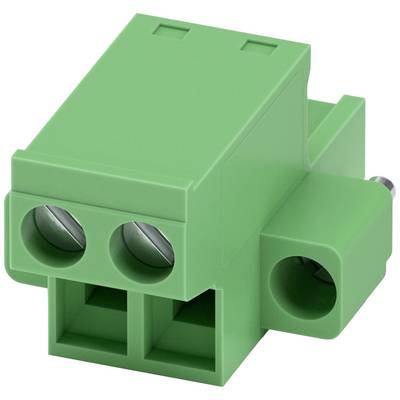

Phoenix Contact Socket housing cable FRONT-MSTB Total number of pins 2 Contact spacing: 5.08 mm 1777808 100 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
FRONT-MSTB
CS
5.08 mm
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 2.23 / piece)
€ 222.69
plus VAT.
14-day return policy included
Highlights & Details
Printed-circuit board connector FRONT-MSTB 2,5/ 2-STF-5,08
- Content: 100 pc(s)
- No. of rows: 1
- Total number of pins: 2
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
FRONT-MSTB
- CS
5.08 mm
- Pins per row
2
- Total number of pins
2
- Width
27.20 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
100 pc(s)
- AWG max.
12
- AWG (min.)
24
- Stripping length (max.)
10.00 mm
- Dim
(L x W x H) 15.00 x 27.20 x 19.96 mm
- Connection
Screw terminal
Plug
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1777808
- Factory colour
Green
- Industrial packaging
Yes
- Contact material
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
320 V
- Height
19.96 mm
- Length
15.00 mm
- max. cross section
2.5 mm²
- Min. cross section
0.2 mm²
- Type
FRONT-MSTB 2,5/ 2-STF-5,08
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566826 Phoenix Contact Socket housing cable FRONT-MSTB Total number of pins 2 Contact spacing: 5.08 mm 1777808 100 pc(s)
User & Safety Instructions
User & Safety Instructions 566826 Phoenix Contact Socket housing cable FRONT-MSTB Total number of pins 2 Contact spacing: 5.08 mm 1777808 100 pc(s)
Description
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 2, Pitch: 5.08 mm, Connection method: Screw connection, Color: green, Contact surface: Tin
