Buy Phoenix Contact Socket housing cable MC Total number of pins 3 Contact spacing: 5.08 mm 1836082 1 pc(s)

Green plug connector with ten pins, for use in electronic circuits.

Image similar

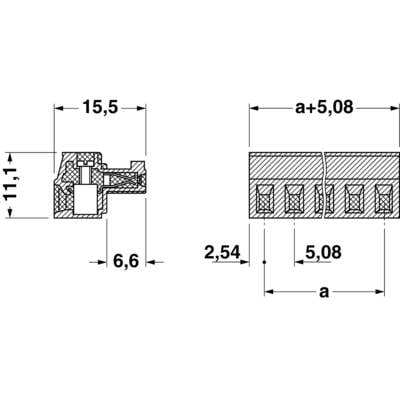

Technical drawing of a plug with dimensions: Height 11.1 mm, Width 15.5 mm, Depth 6.6 mm, Contact spacing 2.54 mm.

1/2

Image similar

Product type

Socket housing cable

Connector type

Plug, straight

No. of rows

Series

5.08 mm

Datasheet (PDF)

290 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.76 / piece)

€

Report legal concerns

Highlights & Details

Connector parts with screw connection, pitch 5.08 mm

Content: 1 ST
This text is machine translated.

Technical specifications

Insulation material group: I
Insulation material type: PA.

Product type: Socket housing cable

Connector type: Plug, straight

No. of rows: 1

Connector system: wire-to-board

Series: MC

CS: 5.08 mm

Pins per row: 3

Total number of pins: 3

Width: 15.50 mm

Nominal current: 8 A

Nominal current - rounded value: 8 A

Content: 1 pc(s)

AWG max.: 16

AWG (min.): 28

Stripping length (max.): 7.00 mm

Dim: (L x W x H) 11.10 x 15.50 x 15.24 mm

Connection: Screw terminal
Plug

Case material: Polyamide

Manufacturer part #: 1836082

Factory colour: Green

Industrial packaging: No

Contact material: Cathode copper

Connector contact surface: Tin plated

Nominal voltage: 320 V

Height: 15.24 mm

Length: 11.10 mm

max. cross section: 1.50 mm²

Min. cross section: 0.14 mm²

RoHS-compliant

Type: MC 1,5/ 3-ST-5,08

Nominal current (details): 8 A

Contamination level: 3

Connector cross section: 1.5 mm²

Cross section: 1.5 mm²

Connection: -

Documents & Downloads

Datasheet

Datasheet 743816 Phoenix Contact Socket housing cable MC Total number of pins 3 Contact spacing: 5.08 mm 1836082 1 pc(s)

User & Safety Instructions

User & Safety Instructions 743816 Phoenix Contact Socket housing cable MC Total number of pins 3 Contact spacing: 5.08 mm 1836082 1 pc(s)

Description

MINI COMBICON plug part with screw terminals.
MINI COMBICON plug part:Low construction height of MC 1.5 plug-family, large fast overcharged, pin headers with low construction height and compact grids, individual pole coding by removing the coding flange and putting the coding profile at the housing. Plug-in direction parallel to the conductor axis.
