Phoenix Contact Socket housing cable MSTB Total number of pins 2 Contact spacing: 5 mm 1754449 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
5
3% = € 0.05
€ 1.62
10
5% = € 0.08
€ 1.59
50
10% = € 0.17
€ 1.50
100
20% = € 0.33
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€
Highlights & Details
Plugs parts with screw connection
- Content: 1 ST
- This text is machine translated.
Technical specifications
- Insulation material group: I
- Insulation material type: PA.
- Connector type
Socket, straight
- Connector system
wire-to-board
- Series
MSTB
- Features
+ extractor sleeve
- CS
5 mm
- Pins per row
2
- Total number of pins
2
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
1 pc(s)

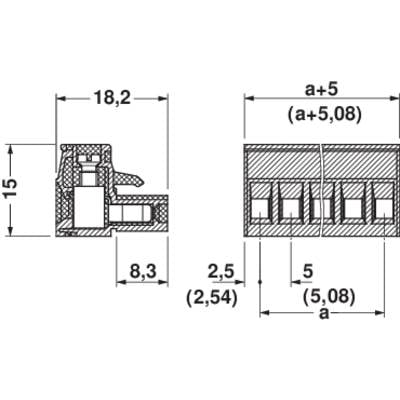

- Dim
(L x W x H) 10.00 x 18.20 x 15.00 mm
- Factory colour
Green
- Height
15.00 mm
- Length
10.00 mm
- Width
18.20 mm
- Industrial packaging
Yes
- Connection
Screw terminal
Plug
- Manufacturer part #
1754449
- Type
MSTB 2,5/ 2-ST
- Type
angled.
- Nominal voltage
320 V
- AWG max.
12
- AWG (min.)
24
- max. cross section
2.5 mm²
- Stripping length (max.)
7.00 mm
- Nominal current (details)
12 A
- No. of rows
1
- Contamination level
3
- Connector cross section
0.2 -2.5 mm mm²
- Cross section
2.5 mm²
- Connection
-
- Contact material
Tin plated
- Min. cross section
0.2 mm²
- Product type
Socket housing cable
Documents & Downloads
Datasheet
Datasheet 743839 Phoenix Contact Socket housing cable MSTB Total number of pins 2 Contact spacing: 5 mm 1754449 1 pc(s)
User & Safety Instructions
User & Safety Instructions 743839 Phoenix Contact Socket housing cable MSTB Total number of pins 2 Contact spacing: 5 mm 1754449 1 pc(s)
Description
CLASSIC COMBICON plug
MINI COMBICON plug part:Low construction height of MC 1.5 plug-family, generous wiring space overcharged, pin headers with low construction height and compact grids, individual pole coding by removing the coding flange and putting the coding profile at the housing. Plug-in direction parallel to the conductor axis.
