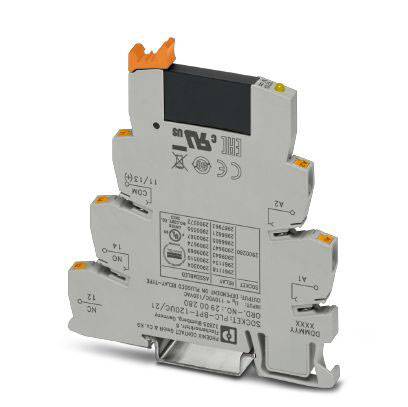

Phoenix Contact SSR 2900367 Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
108 V AC
99 V DC
Control voltage (max.)
132 V AC
121 V DC
Output voltage (max.)
33 V DC
Datasheet (PDF)
Technical specifications
- RATED INPUT VOLTAGE UN:120VAC (110VDC)
- Operating voltage display: Yellow LED
- Output circuit: 2-wire, ground-free
- All mounting positions permitted
- Mounting instructions: Can be aligned without distance
- Wire stripping length: 8 mm
- Conductor cross-section rigid: 0.14 mm² ... 2.5 mm²
- Conductor cross-section flexible: 0.14 mm² ... 2.5 mm²
- Conductor cross-section AWG: 26 ... 14
- Insulation: Basic insulation
- Pollution level: 2
- Over voltage category III
- Packaging type
Piece
- Product type
SSR
- Type
PLC-OPT-120UC/ 24DC/2
- Switching type
Zero crossing
- Connection
Push-in connector
- Control voltage (min.)
108 V AC
99 V DC
- Control voltage (max.)
132 V AC
121 V DC
- Control voltage range
108, 99 - 132, 121 V AC, V DC
- Control current (max.)
3.5 mA
- Output voltage (min.)
3 V DC
- Output voltage (max.)
33 V DC
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
6.2 mm
- Height
80 mm
- Depth
94 mm
- Permanent current (max.)
3 A
- Content
1 pc(s)
- Nominal control voltage
120 V AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2225421 Phoenix Contact SSR 2900367 Zero crossing 1 pc(s)
Datasheet 2225421 Phoenix Contact SSR 2900367 Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2225421 Phoenix Contact SSR 2900367 Zero crossing 1 pc(s)
Description
High switching power Integrated input circuit. Functional jumpers. Zero voltage switch for AC output.
