Phoenix Contact SSR 2902973 50 mA Switching voltage (max.): 30 V DC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Switching voltage (max.)
30 V DC
Current load (max.)
50 mA
Output voltage (max.)
30 V DC
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
PLC-OPT- 5DC/24DC/100KHZ-G
- Switching voltage (min.)
14 V DC
- Switching voltage (max.)
30 V DC
- Current load (max.)
50 mA
- Output voltage (min.)
14 V DC
- Output voltage (max.)
30 V DC
- Max. output current
50 mA
- Content
1 pc(s)
- Nominal control voltage
5 V DC
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1830480 Phoenix Contact SSR 2902973 50 mA Switching voltage (max.): 30 V DC 1 pc(s)
Description

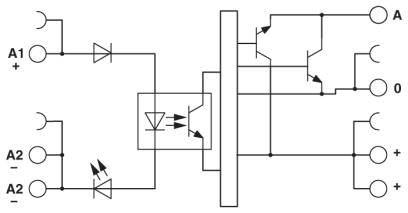

Input solid-state relays, with direct voltage output against clock, Transmission frequency: 100 kHz, with illuminated display and protective circuit in input and output circuit, input: 5 V DC, output: 14 - 30 V DC/50 mA
