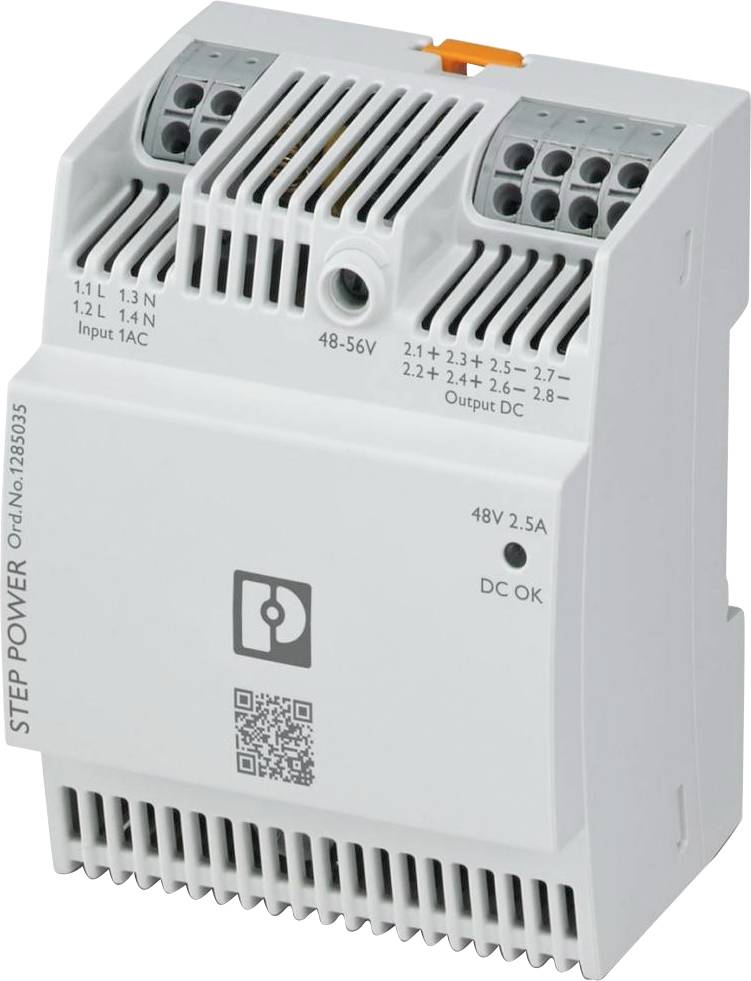

Phoenix Contact 1285035 Rail mounted PSU (DIN) 48 V DC 2.5 A 120 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
14-day return policy included
Technical specifications
- Wire connection
- Connection type Push-in connection: Rigid 0.2 mm² ... 2.5 mm².
- flexible: 0.2 mm² ... 2.5 mm².
- Nominal input voltage
115 V/AC
230 V/AC
- Product type
Rail mounted PSU (DIN)
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
120 W
- Phases
1
- Output voltage (nominal)
48 V DC
- Connection
Push-in spring-loaded terminal
- Dim
(L x W x H) 61 x 72 x 90 mm
- Weight
255 g
- Output voltage (max.)
56 V DC
- Output voltage (min.)
48 V DC
- Manufacturer part #
1285035
- Content
1 pc(s)
- Width
72 mm
- Height
90 mm
- Length
61 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-10 °C
- Type
STEP3-PS/1AC/48DC/2.5/PT
- UKCA
yes
