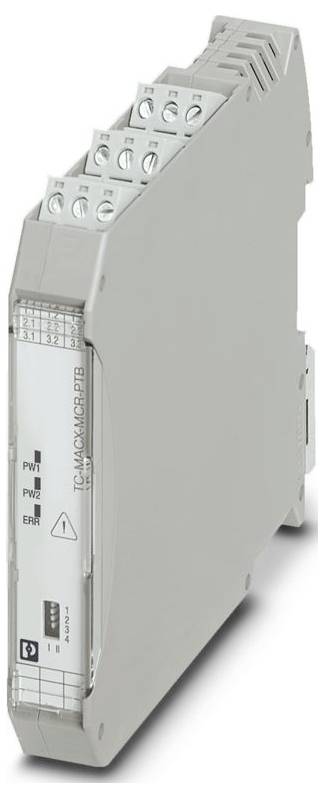

Phoenix Contact TC-MACX-MCR-PTB 2904673 Feeder/fault indication module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: screw terminals.
- M3 screw thread
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 14
- Width 17.5 mm
- Height: 103.6 mm
- Depth: 113.7 mm
- Colour: Grey (RAL 7042)
- Material housing PA 6.6
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -20 °C ... 60 °C (only on termination carrier)
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m.
- Standards/regulations EN 61000-4-6
- Note: Small deviations may occur during interference.
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Stripped length: 7 mm
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- ATEX
- Identification: UL 61010 Listed;Class I, Div. 2, GROUPS A, B, C, D T5;CLASS I, Zone 2, Group IIC
- UL, USA / Canada: UL, USA / Canada
- Input voltage – 0.7 V
- CE CE
- Certificate PxCIF21UKEX2904673X
- Signal
- Electromagnetic compatibility: Conformity to EMC directive
- Interference radiation: Interference radiation
- Conducted interference: Conducted interference
- Immunity speed EN 61000-6-2
- Switching voltage maximum 30 V AC/DC (2 A)
- 1 red LED (error);2 green LED (PWR1 and PWR2)
- Designation: Conducted interference variables
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- Contact version 1 changeover contacts
- Flammability class to UL 94 (housing): V0 (housing)
- Contact material: AgSnO, hard gold plated
- UKCA Ex (UKEX) UKCA Ex (UKEX)
- Reverse polarity and overvoltage protection: Yes
- Output signal current maximum: 2 A (redundancy range)
- NS 35/7.5 depth: 114.5 mm (snapped onto DIN rail NS 35/7.5 in accordance with EN 60715)
- Input signal voltage: 19.2 V DC ... 30 V DC
- Switching: Relays: Switching: Relays
- Evaluation criterion: A.
- Product type
Feeder/fault indication module
- No. of relay outputs (max.)
1
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 V DC (min)
- Height
103.6 mm
- Length
113.7 mm
- Width
17.5 mm
IP20
- Dim
(L x W x H) 113.7 x 17.5 x 103.6 mm
- Manufacturer part #
2904673
- Type
TC-MACX-MCR-PTB
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Ex Zoning
2
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579732 Phoenix Contact TC-MACX-MCR-PTB 2904673 Feeder/fault indication module
User & Safety Instructions
User & Safety Instructions 3579732 Phoenix Contact TC-MACX-MCR-PTB 2904673 Feeder/fault indication module
Description
Feed and error message modules with screw connection, only for use on the Termination Carrier, exclusive associated rail bus connector
