A compact, digital control unit with multiple ports and an antenna connection for data communication in industrial applications.

Image similar

A compact, digital control unit with multiple ports and an antenna connection for data communication in industrial applications.

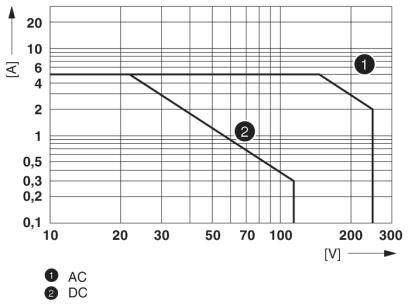

'Diagram shows current limitation curves for AC (1) and DC (2) in amperes against voltage in volts.'

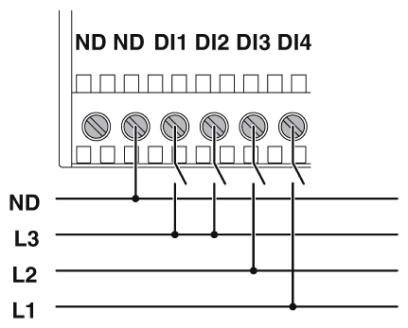

Diagram of an electrical connection: Shows connections from ND to DI4 with lines to L3, L2, L1. Markings ND, DI1-DI4 at the top.

Diagram of electrical connections, showing the wiring of L (live/phase) and N (neutral conductor) with screw terminals.

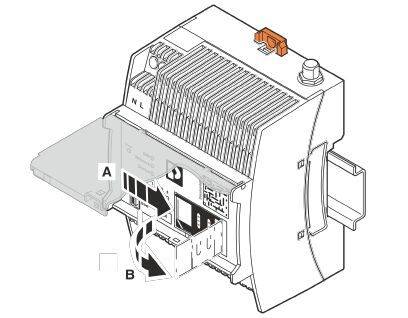

Figure of an electricity meter with marked connections. Labelled 'A' for current connection, 'B' for mains connection. Housing opened.

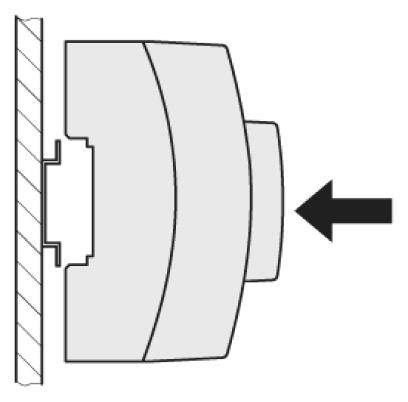

Cross-section of a mechanical component which is intended to be moved in the direction of an arrow.

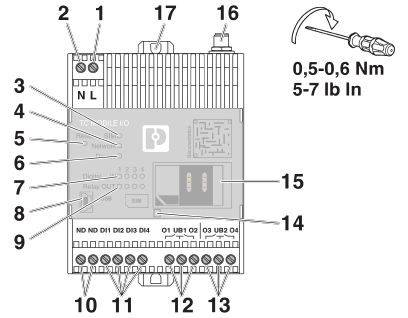

Figure of an electronic device with multiple numbered ports and an instruction for tightening torque of 0.5-0.6 Nm.

'Circuit diagram of an electrical circuit with switches O1, O2 and UB1, connected with conductors L and N.'

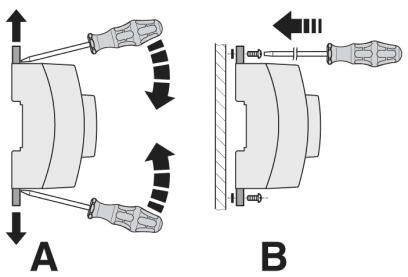

'Diagram shows two views of an object: View A shows rotation in both directions, View B shows pressure in arrow direction with screwdriver.'

1/9

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

SMS relay

Highlights & Details

Monitor SMS relays and signaling module, European version, analogue and digital values over mobile network
Future-proof 4G technology (LTE CAT1)
Supply voltage 93 V ... 250V AC
Alarm via SMS in the field and, for example, via e-mail in the control room

Technical specifications

Type: TC MOBILE I/O X200-4G AC

Product type: GSM modem

Function: Switch

Interfaces: Terminal strip

: IP20

Manufacturer part #: 1038568

Mounting type: DIN rail
Wall

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2209012 Phoenix Contact TC MOBILE I/O X200-4G AC GSM modem Function (GSM): Switch

Datasheet 2209012 Phoenix Contact TC MOBILE I/O X200-4G AC GSM modem Function (GSM): Switch

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 2209012 Phoenix Contact TC MOBILE I/O X200-4G AC GSM modem Function (GSM): Switch

Description

Mounting on mounting rail or on the wall.

This text is machine translated.
