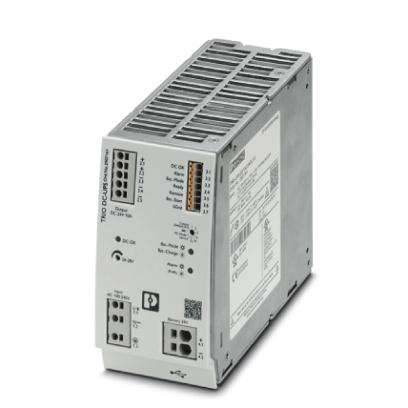

Phoenix Contact TRIO-UPS-2G/1AC/24DC/10 2907161 UPS
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width for alternative mounting: 160 mm
- Height for alternative mounting: 130 mm
- Depth with alternative mounting: 68 mm
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C DERATING 2.5 %/K)
- Max. Permissible Air humidity (operating): ≤ 93 % (at +25 °C, no condensation)
- Climate class: 3K3 (according to EN 60721)
- Pollution level: 2
- Installation height: ≤ 4000 m (> 2000 m, observe derating)
- Product type
UPS
- Input voltage (max.)
240 V AC
- Min. input voltage
100 V AC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V
- Dim
(W x H x D) 68 x 130 x 160 mm
- Output current (details)
10 A
- Weight
1.34 kg
- Width
68 mm
- Height
130 mm
- Depth
160 mm
- Type
TRIO-UPS-2G/1AC/24DC/10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225701 Phoenix Contact TRIO-UPS-2G/1AC/24DC/10 2907161 UPS
Datasheet 2225701 Phoenix Contact TRIO-UPS-2G/1AC/24DC/10 2907161 UPS
User & Safety Instructions
User & Safety Instructions 2225701 Phoenix Contact TRIO-UPS-2G/1AC/24DC/10 2907161 UPS
Description
Space-saving: USVModul and energy storage combined in one housing. Long buffer times thanks to a large selection of VRLA energy storage devices. USB interface for connecting to higher-level controllers such as IndustriePCs. Starting from the energy storage is also possible without an input network. Universal application possibilities through extensive approval package and extended temperature range. Simple installation through push-in connection technology.
