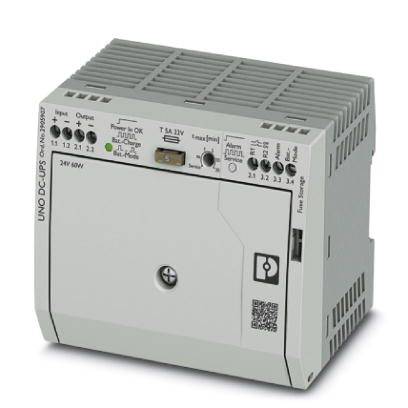

Phoenix Contact UNO-UPS/24DC/24DC/60W 2905907 UPS
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Ambient temperature (operation): -15 °C ... 50 °C
- Max. Permissible Humidity (Operating): ≤ 95% (at 25 °C, no condensation)
- Pollution level: 2
- Product type
UPS
- Nominal power
60 W
- Input voltage (max.)
29.5 V DC
- Min. input voltage
22.5 V DC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Dim
(W x H x D) 110 x 90 x 84 mm
- Output current (details)
2.5 A
- Weight
1 kg
- Width
110 mm
- Height
90 mm
- Depth
84 mm
- Type
UNO-UPS/24DC/24DC/60W
IP20
110
90 mm
84 mm
1.182 kg/m
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225650 Phoenix Contact UNO-UPS/24DC/24DC/60W 2905907 UPS
Datasheet 2225650 Phoenix Contact UNO-UPS/24DC/24DC/60W 2905907 UPS
User & Safety Instructions
User & Safety Instructions 2225650 Phoenix Contact UNO-UPS/24DC/24DC/60W 2905907 UPS
Description
Compact and slim.
