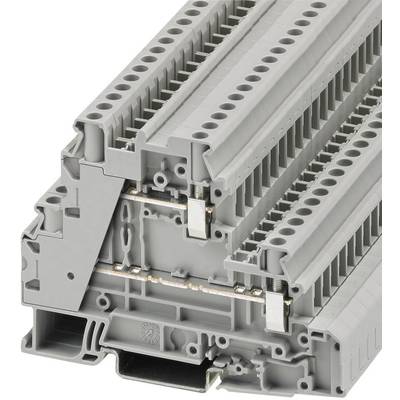

Phoenix Contact 3214362 Triple port continuity 6.2 mm Screws Grey 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Triple port continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 5.87 / piece)
€ 293.28
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Triple port continuity
- Features
Explosion-proof
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3214362
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 4-L/L
- Dim
(L x W x H) 92.7 x 6.2 x 60.1 mm
- Width
6.2 mm
- Height
60.1 mm
- Length
92.7 mm
- Flammability rating
V0
- UKCA
yes
