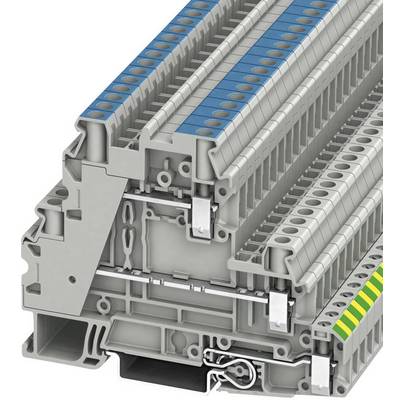

Phoenix Contact 3214361 Triple port PG terminal 6.2 mm Screws Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 10.50 / piece)
€ 525.21
plus VAT.
Highlights & Details
Three-level protective conductor terminal UT 4-PE/L/N
- UT 4-PE/L/N
Technical specifications
- Product type
Triple port PG terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
3
- Number of pins
5
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3214361
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 4-PE/L/N
- Dim
(L x W x H) 92.7 x 6.2 x 60.1 mm
- Width
6.2 mm
- Height
60.1 mm
- Length
92.7 mm
- Flammability rating
V0
- Connector colour
Green-yellow
Blue
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
