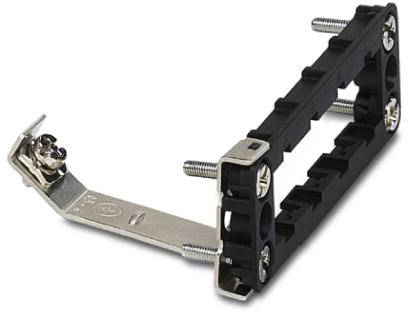

Metal and plastic mounting bracket with screws, with side mounting option, suitable for installation in electronic devices.

Image similar

Metal and plastic mounting bracket with screws, with side mounting option, suitable for installation in electronic devices.

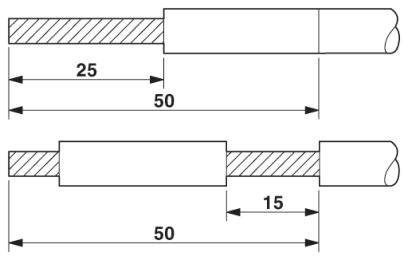

Two technical drawings of a cylindrical object with dimensions of 25, 50 and 15 units. Shows length proportions.

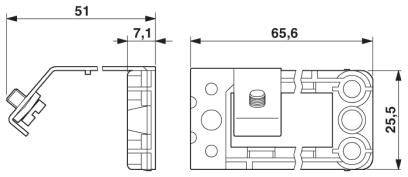

'Technical drawing of an electrical connection with dimensions: Length 51 mm, Width 65.6 mm, Height 25.5 mm.'

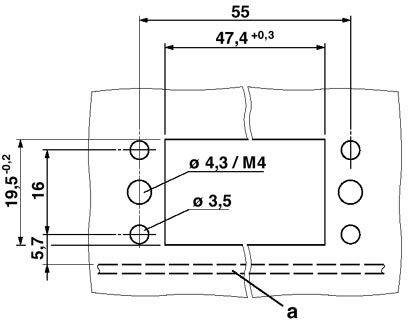

Technical drawing of a plate with five holes. Dimensions in millimetres: Width 55, Height 16, Hole diameter Ø 4.3/M4 and Ø 3.5.

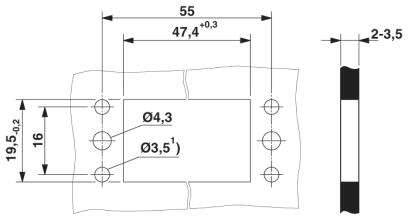

Technical drawing of a rectangular part with dimensional entries, drill holes, and cross-section view. Key dimensions: 55 x 19.5 mm, hole diameters Ø4.3 and Ø3.5 mm.

1/5

Image similar

Product type

Extension bracket

Type

VC-AR2/3M-PEA

Manufacturer part #

1607774

Factory colour

Black

Total no. of pins

+ PE

Datasheet (PDF)

European union

Phoenix Contact

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mounting frame

Our service for you

Technical specifications

Size VC2
Connection cross-section: 0.5 mm² - 4 mm² (for PE conductor)
Material contact surface: Nickel-plated

Type: VC-AR2/3M-PEA

Product type: Extension bracket

Manufacturer part #: 1607774

Factory colour: Black

Total no. of pins: + PE

Content: 1 pc(s)

Material: PA 6.6
Brass

Leading contact (PE): Yes

Documents & Downloads

Datasheet

European union

Datasheet 2136813 Phoenix Contact VC-AR2/3M-PEA Mounting frame Content: 1 pc(s) Extension bracket

User & Safety Instructions

User & Safety Instructions 2136813 Phoenix Contact VC-AR2/3M-PEA Mounting frame Content: 1 pc(s) Extension bracket

Description

Any pole can be PE contact.
