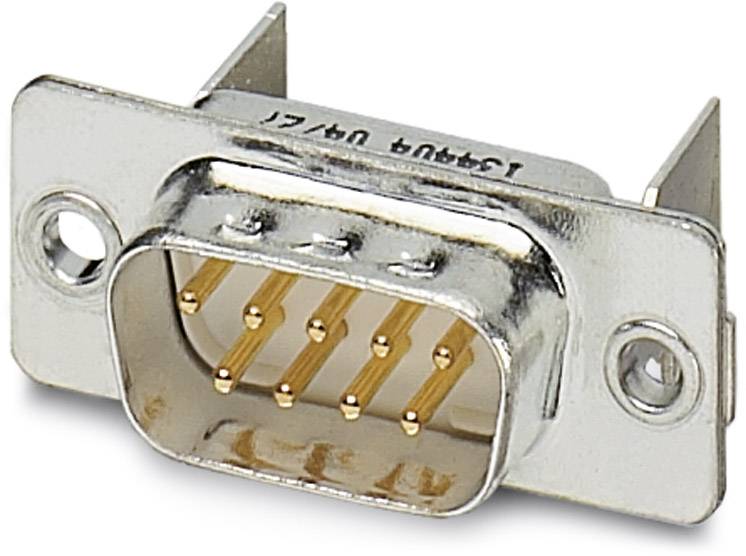

Phoenix Contact VS-09-ST-DSUB-LH-B 1654785 D-SUB pin strip 90 ° Number of pins: 9 Soldering 10 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
D-SUB pin strip
Connector type
Plug, horizontal mount
Number of pins
9
Connection
Soldering
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 10.08 / piece)
€ 109.24
-8 %
€ 100.83
plus VAT.
Only 1 Set(s) available
Highlights & Details
D-SUB contact insert VS-09-ST-DSUB-LH-B
- D-SUB pin strip
- Number of pins: 9
Technical specifications
- Packaging type
Package
- Product type
D-SUB pin strip
- Connector type
Plug, horizontal mount
- Number of pins
9
- Connection
Soldering
- Connection angle
90°
- Content
10 pc(s)
- Manufacturer part #
1654785
- Industrial packaging
Yes
- Features
L-shaped
- Type
VS-09-ST-DSUB-LH-B
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 772247 Phoenix Contact VS-09-ST-DSUB-LH-B 1654785 D-SUB pin strip 90 ° Number of pins: 9 Soldering 10 pc(s) Package
User & Safety Instructions
User & Safety Instructions 772247 Phoenix Contact VS-09-ST-DSUB-LH-B 1654785 D-SUB pin strip 90 ° Number of pins: 9 Soldering 10 pc(s) Package
Description
D-SUB contact insert, shell size 1, with nine signal contacts, contact type pin, for PCB assembly, angled, fixing with a 2.5 mm hole and solder metal plate, for panel mounting frame VS-09-...
Hints
Special order, no right of withdrawal.
