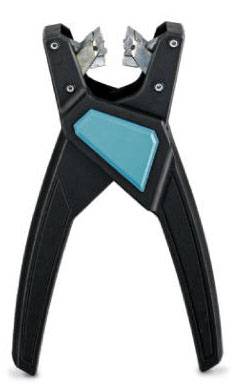

Phoenix Contact WIREFOX SAC-1 1212757 Cable stripping pliers 2.5 up to 4 mm² 3.2 up to 4.4 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Stripped length: 100 mm
- Colour: Black
- Product type
Cable stripping pliers
- Suitable for
PUR-coated halogen-free sensor cables
- Operating range (diameter)
3.2 up to 4.4 mm
- Working area diameter (min.)
3.2 mm
- Operating range (diameter) (max.)
4.4 mm
- Working area (cross section)
2.5 up to 4 mm²
- Working area cross section (min.)
2.5 mm²
- Operating range (cross section) (max.)
4 mm²
- Length
165 mm
- Weight
126 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209142 Phoenix Contact WIREFOX SAC-1 1212757 Cable stripping pliers 2.5 up to 4 mm² 3.2 up to 4.4 mm
User & Safety Instructions
User & Safety Instructions 2209142 Phoenix Contact WIREFOX SAC-1 1212757 Cable stripping pliers 2.5 up to 4 mm² 3.2 up to 4.4 mm
Description
The wire stripping pliers WIREFOX ... are characterized by the automatic adjustment mechanism for various insulation and conductor diameters.
