Phoenix Contact ZAP 40 1212630 Squeezer Ferrules 0.25 up to 4 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Crimping: Trapezoid
- Pressure range: 4 bar - 6 bar
- Air consumption per pressing: 0.2 l
- Product type
Squeezer
- Manufacturer part #
1212630
- Range of uses
Ferrules
- Crimp area
0.25 up to 4 mm²
- Crimp area AWG
12 up to 24 awg
- Crimp area (min.)
0.25 mm²
- Crimp area (max.)
4 mm²
- Crimp area AWG (min.)
24 awg
- Crimp area AWG (max.)
12 awg
- Length
200 mm
- Width
44 mm
- Height
44 mm
- Weight
0.4 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209141 Phoenix Contact ZAP 40 1212630 Squeezer Ferrules 0.25 up to 4 mm²
Datasheet 2209141 Phoenix Contact ZAP 40 1212630 Squeezer Ferrules 0.25 up to 4 mm²
User & Safety Instructions
User & Safety Instructions 2209141 Phoenix Contact ZAP 40 1212630 Squeezer Ferrules 0.25 up to 4 mm²
Description

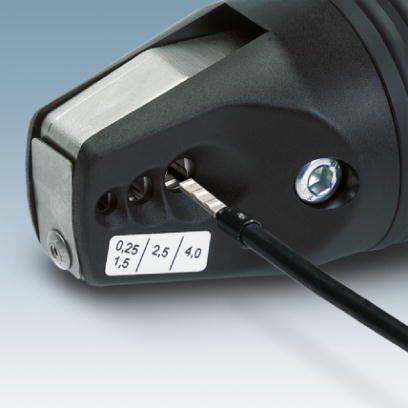

Pneumatic crimping pliers, for wire end sleeves according to DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for wire cross-section 0.25 - 4 mm², trapezoid crimping, lateral entry
