PIC HSR-V15K N/A
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
10000 V DC
7000 V AC
Switching current (max.)
3 A
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.08
5
3% = € 0.93
€ 30.15
10
5% = € 1.55
€ 29.53
50
10% = € 3.11
€ 27.97
100
20% = € 6.21
€ 24.87
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 31.08 / piece)
€ 31.92
€ 31.08
plus VAT.
Technical specifications
- Product type
Reed switch
- Type
HSR-V15K
- Water activity (max.)
160
- Water activity (min.)
140
- Contact type
1 maker
- Contact material
Tungsten
- Switching voltage (max.)
10000 V DC
7000 V AC
- Switching current (max.)
3 A
- Max. switching capacity
50 W
- Connection
Solder pins
- Enclosure material
Glass
- Max. temperature
+125 °C
- Min. temperature
-60 °C

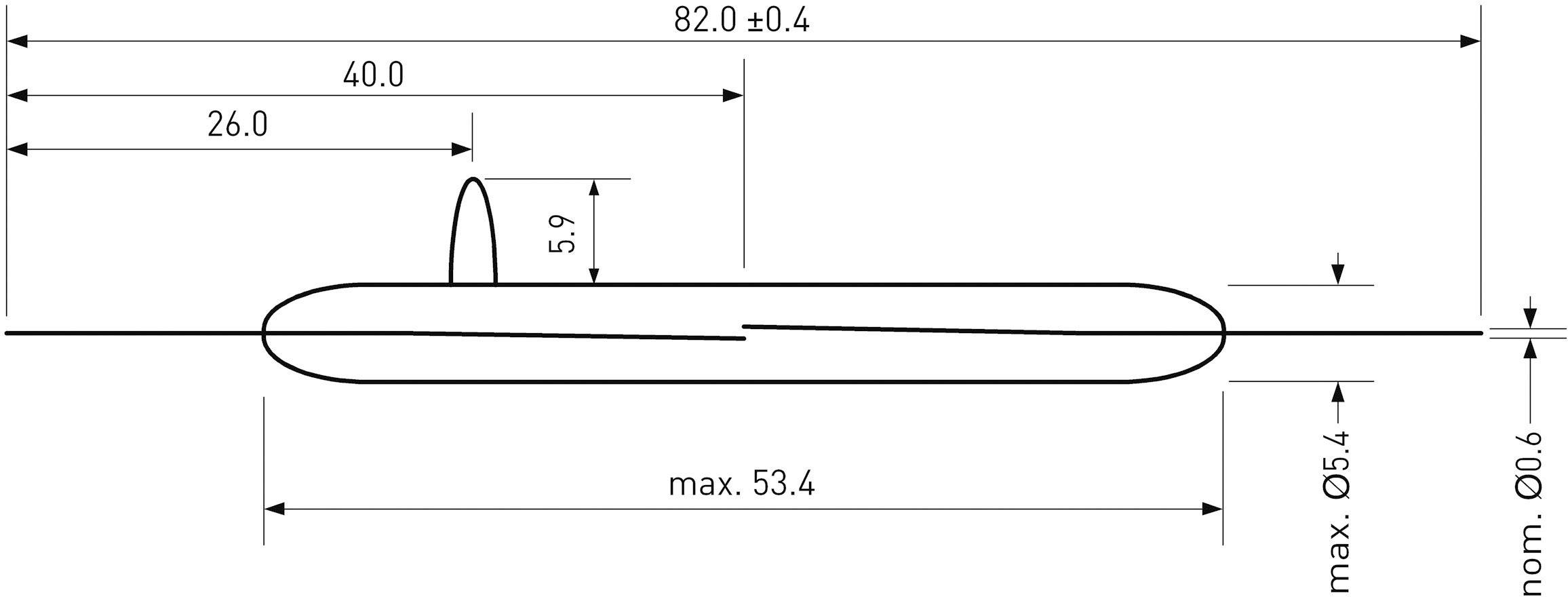

- Dim. (add. text)
Casing
- Length
53.4 mm
- (Ø)
5.4 mm
- Dim
(Ø x L) 5.4 mm x 53.4 mm (Casing)
- RoHS-compliant
Yes
- Water activity
140 - 160
Documents & Downloads
Datasheet
Datasheet 507004 PIC HSR-V15K N/A
User & Safety Instructions
User & Safety Instructions 507004 PIC HSR-V15K N/A
Information
Information 507004 PIC HSR-V15K N/A
Description

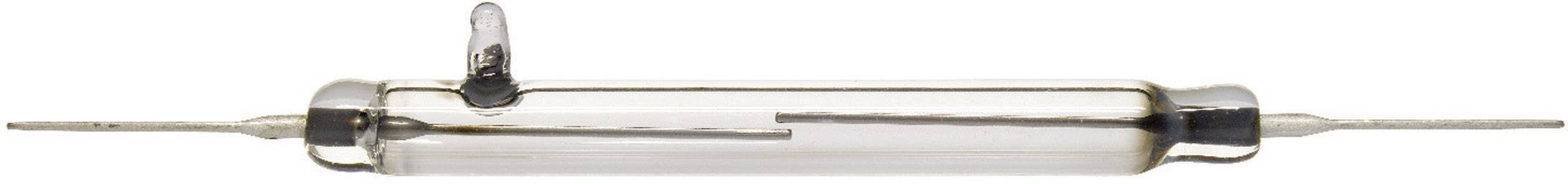

This reed switch is used especially where high electrical strength and a high switching voltage are required.
