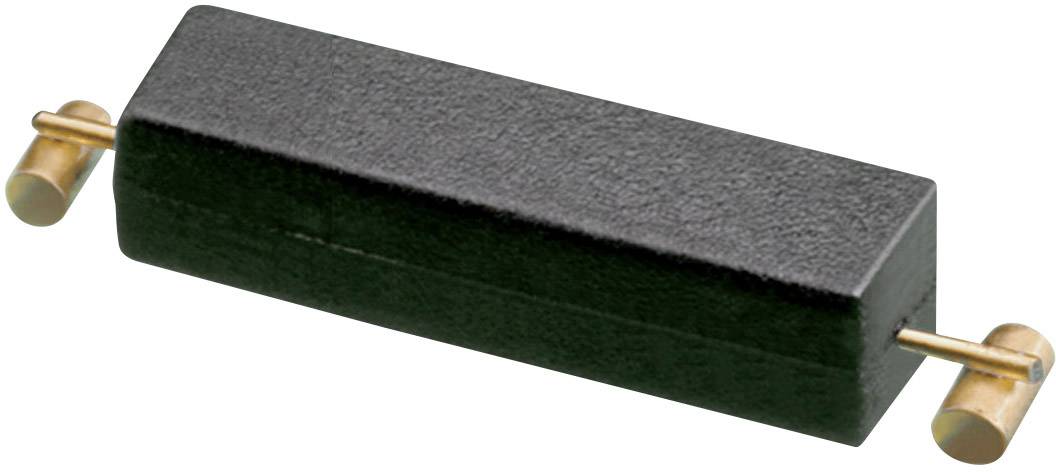

PIC PMC-0701TH1520 Reed switch 1 maker 150 V DC, 120 V AC 0.5 A 10 W, 10 VA
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
150 V DC
120 V AC
Switching current (max.)
0.5 A
Connection
SMD
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 1.25
9
8% = € 0.10
€ 1.15
15
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.25 / piece)
€ 3.75
plus VAT.
14-day return policy included
Highlights & Details
SMD reed switches
Our service for you
Technical specifications
- Product type
Reed switch
- Type
PMC-0701TH1520
- Water activity (max.)
15
- Water activity (min.)
10
- Contact type
1 maker
- Contact material
Ruthenium
- Switching voltage (max.)
150 V DC
120 V AC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
10 VA
- Connection
SMD
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Width
2.8 mm
- Height
2.5 mm
- Length
12.5 mm
- Dim
(L x W x H) 12.5 x 2.8 x 2.5 mm
- RoHS-compliant
Yes
- Water activity
10 - 15
Documents & Downloads
Datasheet
Datasheet 1606474 PIC PMC-0701TH1520 Reed switch 1 maker 150 V DC, 120 V AC 0.5 A 10 W, 10 VA
User & Safety Instructions
User & Safety Instructions 1606474 PIC PMC-0701TH1520 Reed switch 1 maker 150 V DC, 120 V AC 0.5 A 10 W, 10 VA
