Pichler Modellbau BOOST 100 Model aircraft brushless motor kV (RPM per volt): 480
EAN:
Part number:
Item no:
Technical specifications
- Shafts Ø = 8mm (M10)
- Number of pins = 20 / 24N20P
- LiPo = 6S / 22.2V
- Ri = 13.5 MOhm
- IO = 1.77A
- Idling current = 3.5A
- Power max. 2700W
- Rev V_Min-1 = 480KV
- Max load 110A
- Propeller = 18x6, 18x8, 18x10
- Product type
Model aircraft brushless motor
- kV (RPM per volt)
480
- Output power
2700 W
- Type
Brushless
- No. of LiPo cells
6
- Dim
(Ø x L) 62 mm x 78 mm
- Aerobatics & 3D (max.)
6 kg
- Sport & Scale (max.)
8 kg
- Idle current
3.5 A
- short-term
110 A
- Shaft Ø
8 mm
- Length
78 mm
- (Ø)
62 mm
- Weight
450 g
- Manufacturer part #
18050
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204120 Pichler Modellbau BOOST 100 Model aircraft brushless motor kV (RPM per volt): 480
Description

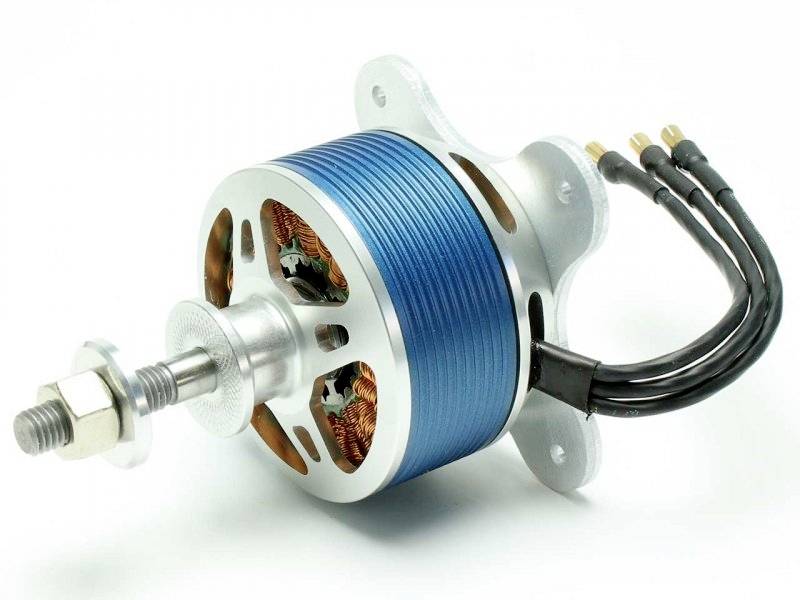

The BOOST 100 is a 20-pin BLDC motor (brushless external rotor), which has been optimized for use with 6S LiPo (6 cells) batteries.
The motor was designed in Pichler according to the latest knowledge and captivates by highest quality, peak power and robustness. WAS many do not know: Over 20 years ago, Pichler was one of the pioneers on the German market, who recognized the potential of the external rotor concept at an early stage and had corresponding engines in the range. The open design is pioneering, the air flow of the propeller cools the motor and thus its optimum inner capacity. Only a cool running motor delivers consistently high performance. The practical, integrated air-screw intake is tuned exactly to the air-screw sizes, which are used in motors of this size. No additional adapters, e.g. those that require an excessive drilling of the air screws and weaken them are necessary. A stable, milled 4-point mounting carrier allows simple installation in the model. The BOOST 100 motor achieves up to 10 kg thrust depending upon the propeller.
Application area:
3D flight models with a wingspan of approx. 170cm/3.5kg (e.g. 67-inch class)
Aerobatic model aircraft up to 6 kg
Sports / Trainer up to 8 kg
This text is machine translated.
The motor was designed in Pichler according to the latest knowledge and captivates by highest quality, peak power and robustness. WAS many do not know: Over 20 years ago, Pichler was one of the pioneers on the German market, who recognized the potential of the external rotor concept at an early stage and had corresponding engines in the range. The open design is pioneering, the air flow of the propeller cools the motor and thus its optimum inner capacity. Only a cool running motor delivers consistently high performance. The practical, integrated air-screw intake is tuned exactly to the air-screw sizes, which are used in motors of this size. No additional adapters, e.g. those that require an excessive drilling of the air screws and weaken them are necessary. A stable, milled 4-point mounting carrier allows simple installation in the model. The BOOST 100 motor achieves up to 10 kg thrust depending upon the propeller.
Application area:
3D flight models with a wingspan of approx. 170cm/3.5kg (e.g. 67-inch class)
Aerobatic model aircraft up to 6 kg
Sports / Trainer up to 8 kg
This text is machine translated.
Features
- 62mm outer diameter
- High torque
- Short construction length offers better fitting options
- 20-pin design for optimum operating characteristics
- Large, high quality ball bearings
- Integrated air-screw intake with 8mm shaft
- Perfect ventilation - cool run and more power
- Ready to install including mounting cross made from aluminum
Scope of delivery
- Motor mounted ready for operation
- Aluminium mounting cross
- User manual.
