Pichler Modellbau BOOST 160 V2 Combo Model aircraft brushless motor kV (RPM per volt): 200

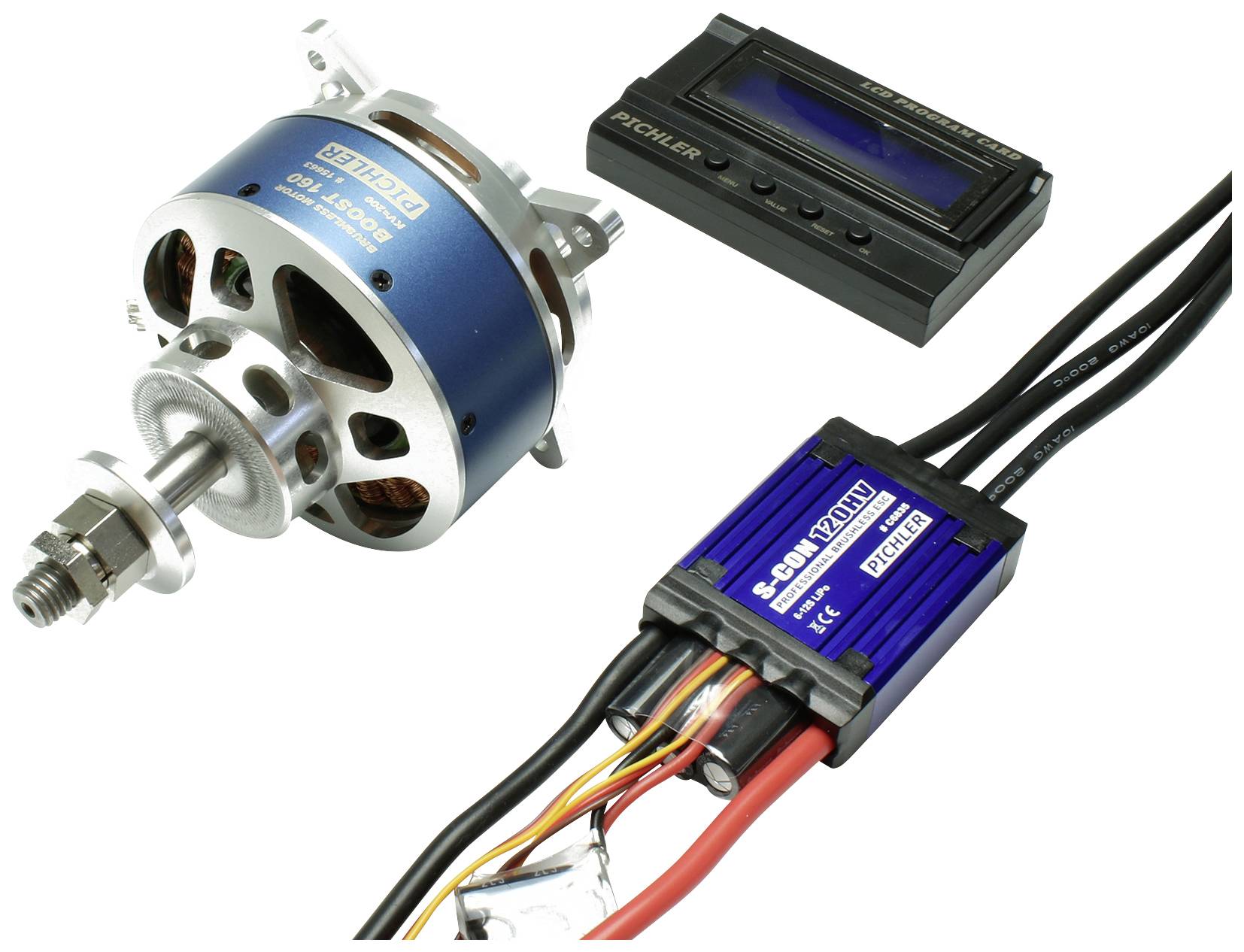

Combo set with price advantage comprising of: 1 x brushless motor boost 160 , 1 x brushless regulator S-CON 120HV - # C6835, 1 x program box - # C6836

The Boost 160 is a 28-pin, brushless external rotor motor. It was designed in the house of Pichler according to the latest knowledge and captivates by highest quality, peak power and robustness. WAS many do not know: Pichler was one of the pioneers on the German market at the beginning of 2000, who fully supported the external rotor concept and had corresponding engines in the range. The open design is pioneering, i.e. the stator and/or copper winding are fully in the air flow of the propeller and are cooled optimally. Only a cool running motor delivers consistently high performance. The practical, integrated air-screw intake is tuned exactly to the air-screw sizes, which are used in motors of this size. No additional adapters, e.g. those that require an excessive drilling of the air screws and weaken them are necessary. A stable, milled 4-point mounting ring allows simple installation in the model. An additional, large ball bearing also supports the coat of the motor bell in the rear area (socket support bearing) "bomb-proof", provides for absolute run-out and prevents defects at the shaft bearings.

Area of application
3D flight models up to 6 kg
Aerobatic model aircraft up to 9 kg
Sports/Trainer up to 13 kg

The engine Boost 160 efficiently replaces glow motors with approx. 30cc displacement / petrol engines with approx. 40 -50cc engine capacity

For optimal performance we recommend Li Po batteries of the brands LemonRC or Red Power.
