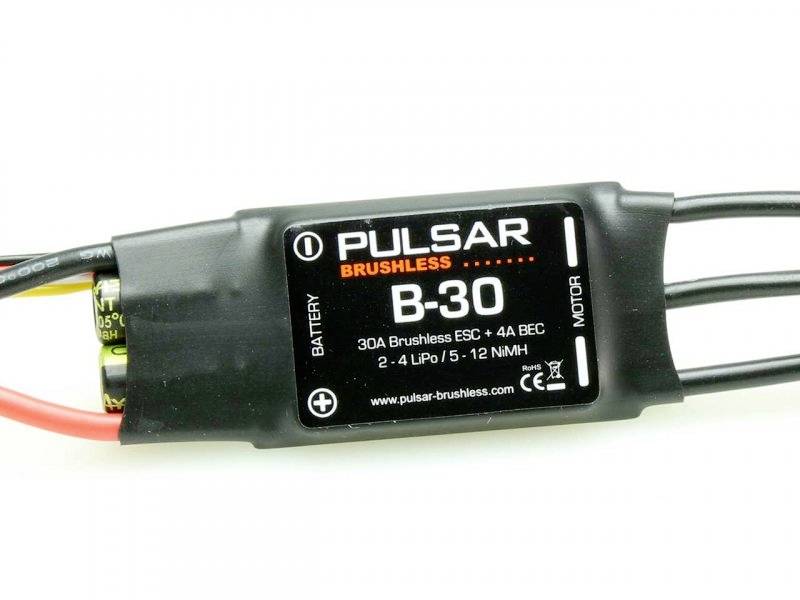

Pichler Modellbau PULSAR B-30 Model aircraft brushless motor controller Load (Amp max.): 40 A
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.86
€ 20.98
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Number of cells = 2 -4 LiPo / 5- 12 NiMH/NiCd
- Load (duration) = 30A
- Load (short time) = 40A
- Integrated receiver power supply (BEC) = 5V/6V / 4A
- Weight = 40g including all cables and connectors
- Dim
(L x W x H) 60 x 25 x 10 mm
- Weight
40 g
- Connector system
XT60
3.5 mm plug
- Load capacity (1s / 30 s / 5 min)
40 A A
- Load (max.)
40 A
- Permanent current
30 A
- No. of NiCd/NiMH batteries
5- 12
- Manufacturer part #
15941
- Height
10 mm
- Length
60 mm
- Width
25 mm
- No. of LiPo cells
2 -4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204131 Pichler Modellbau PULSAR B-30 Model aircraft brushless motor controller Load (Amp max.): 40 A
Description
With forward/backward function (switchable via transmitter)
Pulsar brushless controller impresses through high quality, power and reliability. They fit perfectly to all standard brushless motors (external rotor or internal rotor). Either LiPo, NiMH or NiCd rechargeable batteries can be used as rechargeable batteries. The number of cells is automatically detected by the controller. The internal resistance of the controller is particularly low thanks to the use of modern, high-quality SMD components. The high clock frequency enables a high resolution and sensitive control behavior.
Highly flexible and temperature resistant silicone cables underline high quality.
Adjustable functions:
Brake (off / soft / medium / hard)
Motor rotation direction (forward / reverse)
Battery type (LiPo / NiMH / NiCd)
Switch-off mode motor running (reduced power = 70%, OFF)
Cut-off voltage for LiPo (3.0V / 3.2V / 3.4V / 3.6V)
Cut-off voltage for NiMH / NiCd (50% / 60%)
Start behavior (standard / soft / very soft)
Timing (AUTO/low 5°/medium 15°/high 25°)
SMR FUNCTION (ON/OFF)
SR function (on/off)
BEC adjustable (5V or 6V, default setting = 5V)
This text is machine translated.
Pulsar brushless controller impresses through high quality, power and reliability. They fit perfectly to all standard brushless motors (external rotor or internal rotor). Either LiPo, NiMH or NiCd rechargeable batteries can be used as rechargeable batteries. The number of cells is automatically detected by the controller. The internal resistance of the controller is particularly low thanks to the use of modern, high-quality SMD components. The high clock frequency enables a high resolution and sensitive control behavior.
Highly flexible and temperature resistant silicone cables underline high quality.
Adjustable functions:
Brake (off / soft / medium / hard)
Motor rotation direction (forward / reverse)
Battery type (LiPo / NiMH / NiCd)
Switch-off mode motor running (reduced power = 70%, OFF)
Cut-off voltage for LiPo (3.0V / 3.2V / 3.4V / 3.6V)
Cut-off voltage for NiMH / NiCd (50% / 60%)
Start behavior (standard / soft / very soft)
Timing (AUTO/low 5°/medium 15°/high 25°)
SMR FUNCTION (ON/OFF)
SR function (on/off)
BEC adjustable (5V or 6V, default setting = 5V)
This text is machine translated.
Features
- Ready made with yellow XT60 plug and 3.5mm gold connectors (no soldering required)
- 32-bit processor
- Extremely sensitive control behavior
- Selected, high-quality MOSFET transistors
- Powerful, integrated BEC receiver power supply
- Easy to set up with the optional programming box
- Completely pre-set in the factory
- Proven top quality
- Maximum reliability
