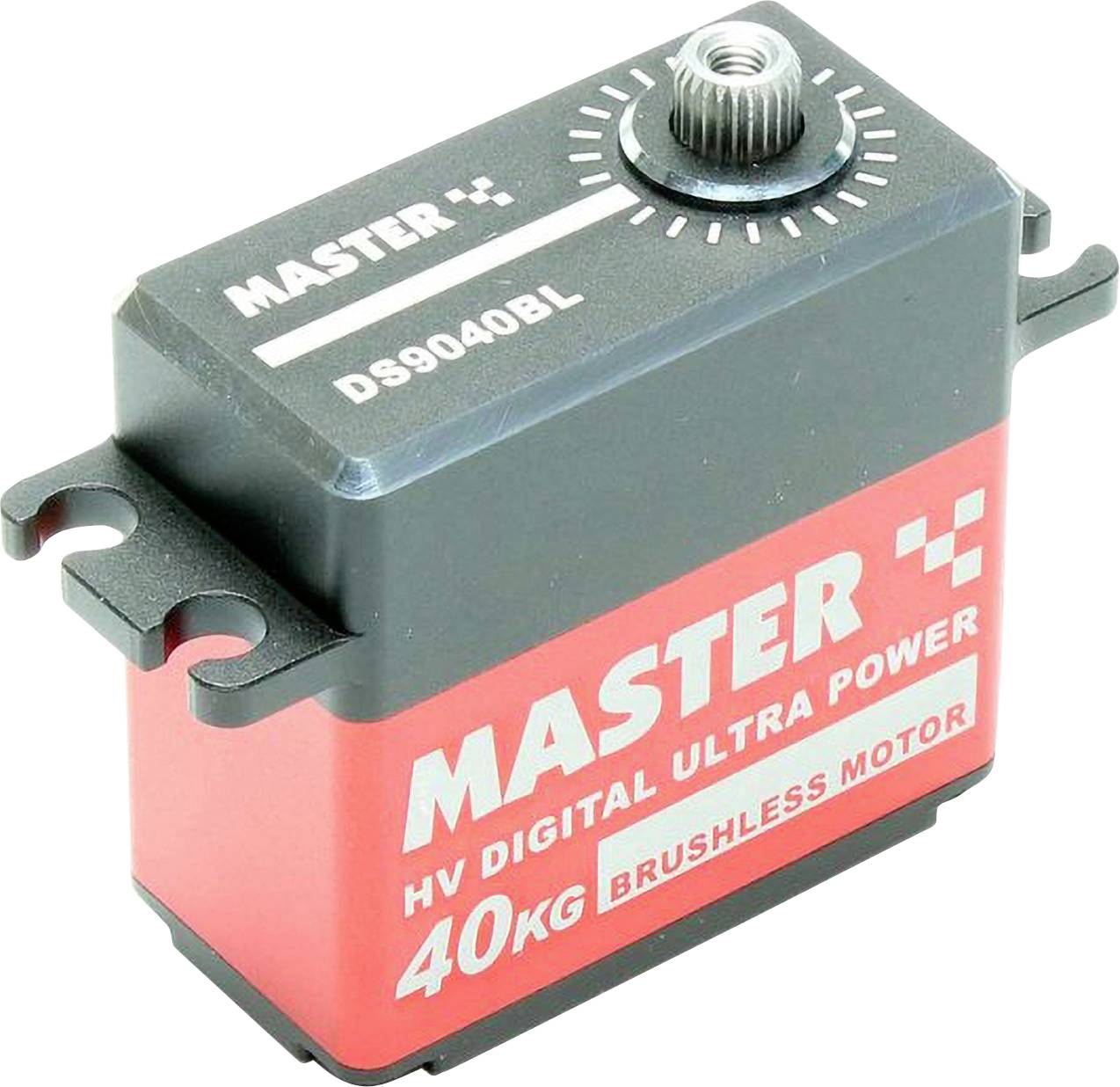

Pichler Modellbau Standard servo Brushless servo Gear box material: Steel Connector system: Uni (Graupner / JR / Futaba)
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage = 6.0 .. 8.4V
- Actuating force = 30 .. 40 kg
- Adjustment time = 0.12s .. 0.07s @45°
- Temperature / working range = -15°C to +70°C.
- Rotation range = 110° +/- 5°
- Pulse width = 900 - 2100µS
- Operating frequency = 1520µS / 333Hz
- Product type
Standard servo
- Dim
(L x W x H) 40 x 20 x 38 mm
- Length
40 mm
- Width
20 mm
- Height
38 mm
- Voltage
High
- Weight
73 g
- Actuation time at 6 V
0.12 s
- Actuation time (7.4 V)
0.07 s
- Gear box
Steel
- Type of bearing
Double ball bearing
- Servo technology
Brushless servo
- Connector system
Uni (Graupner / JR / Futaba)
- Operating voltage
6 - 8.4 V
- Max. operating voltage
8.4 V
- Min. operating voltage
6 V
- Manufacturer part #
18167
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339792 Pichler Modellbau Standard servo Brushless servo Gear box material: Steel Connector system: Uni (Graupner / JR / Futaba)
Description
Premium servo with brushless motor, 40 kg adjusting force in standard size for demanding applications. Powerful, precise and reliable. Ideal servo for larger surface models. Suitable for many 600, 700 and 800 helicopters as swash plate servo and tail servo.
This text is machine translated.
This text is machine translated.
Features
- Digital-Servo
- Brushless Motor
- Watertight: (IP67)
- Case completely CNC-milled aluminum
- Gear steel
- Abrasion 25 teeth
- Ball Bearings [2]
- Connection cable 3-pin JR / Futaba / Uni
- Inclusive of reinforced plastic levers and attachment material
Hints
Special accessories (recommended)
Servo lever aluminum HD 45mm (25Z), # C9350
Servo lever aluminum HD 95mm (25Z), # C9351
