Pichler Modellbau Universal switch
EAN:
Part number:
Item no:
Highlights & Details

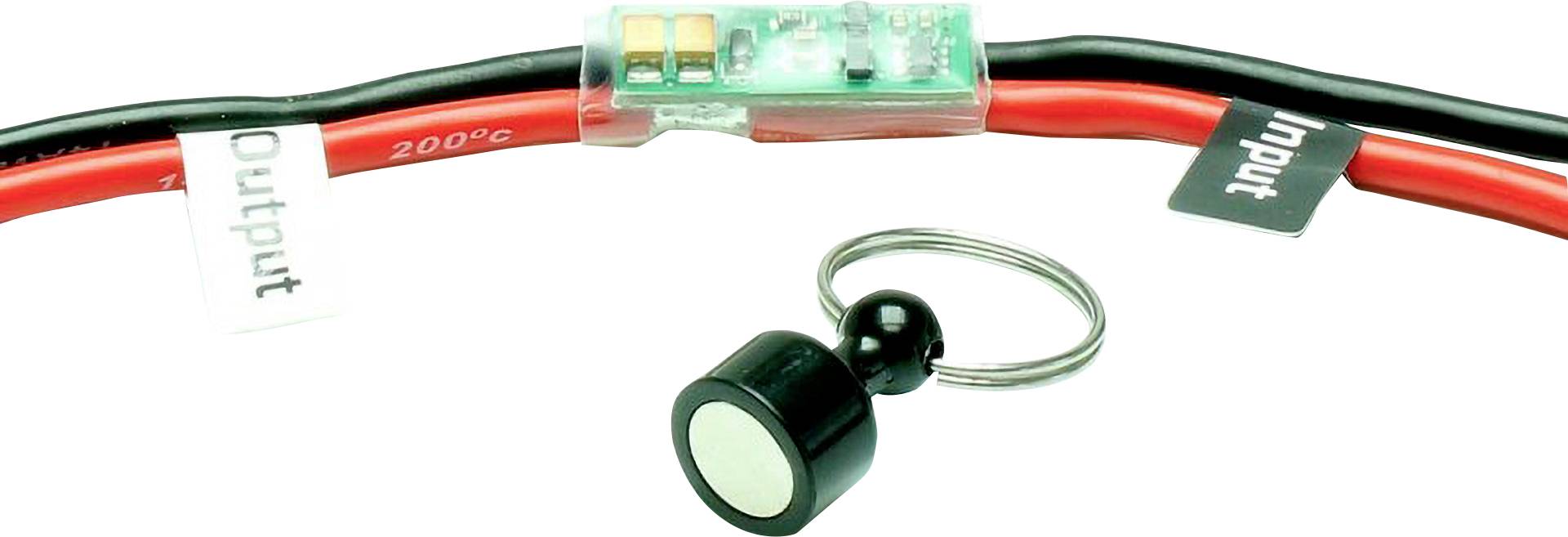

Magnetic switch Magic Switch 15A
- Compact dimensions
- Hardly measurable, low consumption in switched off state
- Integrated fuse failure
- The last status remains until 10 seconds after the power is disconnected
Technical specifications
- Input voltage = 3.5 .. 13 V
- Load capacity = 30A peak / 15A duration
- Standby mode = <10µA
- Cable cross-section = AWG14
- Length with cable = 370mm
- Product type
Universal switch
- Dim
(L x W x H) 25 x 8 x 5 mm
- Length
25 mm
- Width
8 mm
- Height
5 mm
- Weight
22 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339811 Pichler Modellbau Universal switch
Description
Powerful, reliable universal switch. This allows the power source to be switched on or off Can be switched off without actuating a mechanical switch or to open the model.
The switch is installed inside the fuselage, for example. To switch on/off, simply pull the enclosed magnet over the mounting location of the switch and briefly along the outside of the model.
This text is machine translated.
The switch is installed inside the fuselage, for example. To switch on/off, simply pull the enclosed magnet over the mounting location of the switch and briefly along the outside of the model.
