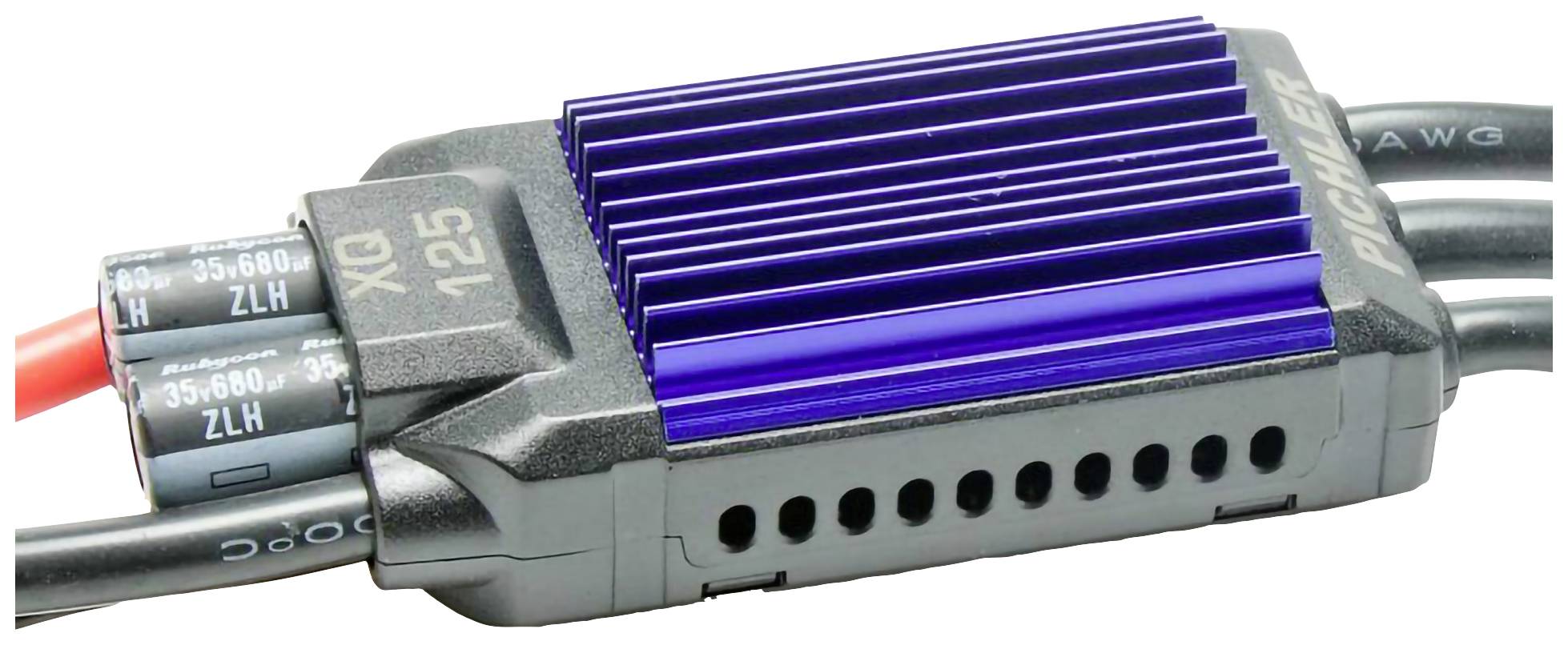

Pichler Modellbau XQ+ 125 Model aircraft brushless motor controller Load (Amp max.): 135 A
EAN:
Part number:
Item no:
Highlights & Details
Brushless regulator XQ+ 125
- Adjustable BEC voltage
- Forward/reverse driving is possible (can be activated via your remote control transmitter)
- Easy programming via the new programming box or via Bluetooth/mobile phone app
Technical specifications
- LiPo cells = 3 -8
- Connections = XT90 plug + 4.0mm gold contact (sockets)
- Product type
Model aircraft brushless motor controller
- Permanent current
125 A
- Dim
(L x W x H) 88 x 38 x 24 mm
- Load (max.)
135 A
- Weight
112 g
- BEC data
8A (6V - 7.4V - 8.4V)
- No. of LiPo cells
3 -8
- Width
38 mm
- Height
24 mm
- Length
88 mm
- Connector system
XT90
- Plug-in battery
XT90
- Motor connector system
4 mm gold-plated
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3014613 Pichler Modellbau XQ+ 125 Model aircraft brushless motor controller Load (Amp max.): 135 A
Description
The controllers are ready to connect, with 3 gold contacts (motor connection) and XT90 for the battery connection. The running behavior is equally good with all the common external motors as well as inner motors. Operation is completely non-critical even in partial load range.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This control does not have a helicopter mode. Please use our SP-CON regulator for helicopters. The programming box or the Bluetooth module is required for programming the controller (can also be used with all other XQ+ controllers).
This text is machine translated.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This control does not have a helicopter mode. Please use our SP-CON regulator for helicopters. The programming box or the Bluetooth module is required for programming the controller (can also be used with all other XQ+ controllers).
This text is machine translated.
Features
- Ideal for flight models
- 32-bit microprocessor
- Extremely sensitive control behavior
- Selected, high-quality MOSFET transistors
- Powerful, integrated BEC receiver power supply
- For all common brushless motors (external rotor or internal rotor)
- Active free run / rectifier for impeller drives
- 1000-fold proven top quality
- Programming box, # 15966
- Bluetooth module ESC, # 15932
