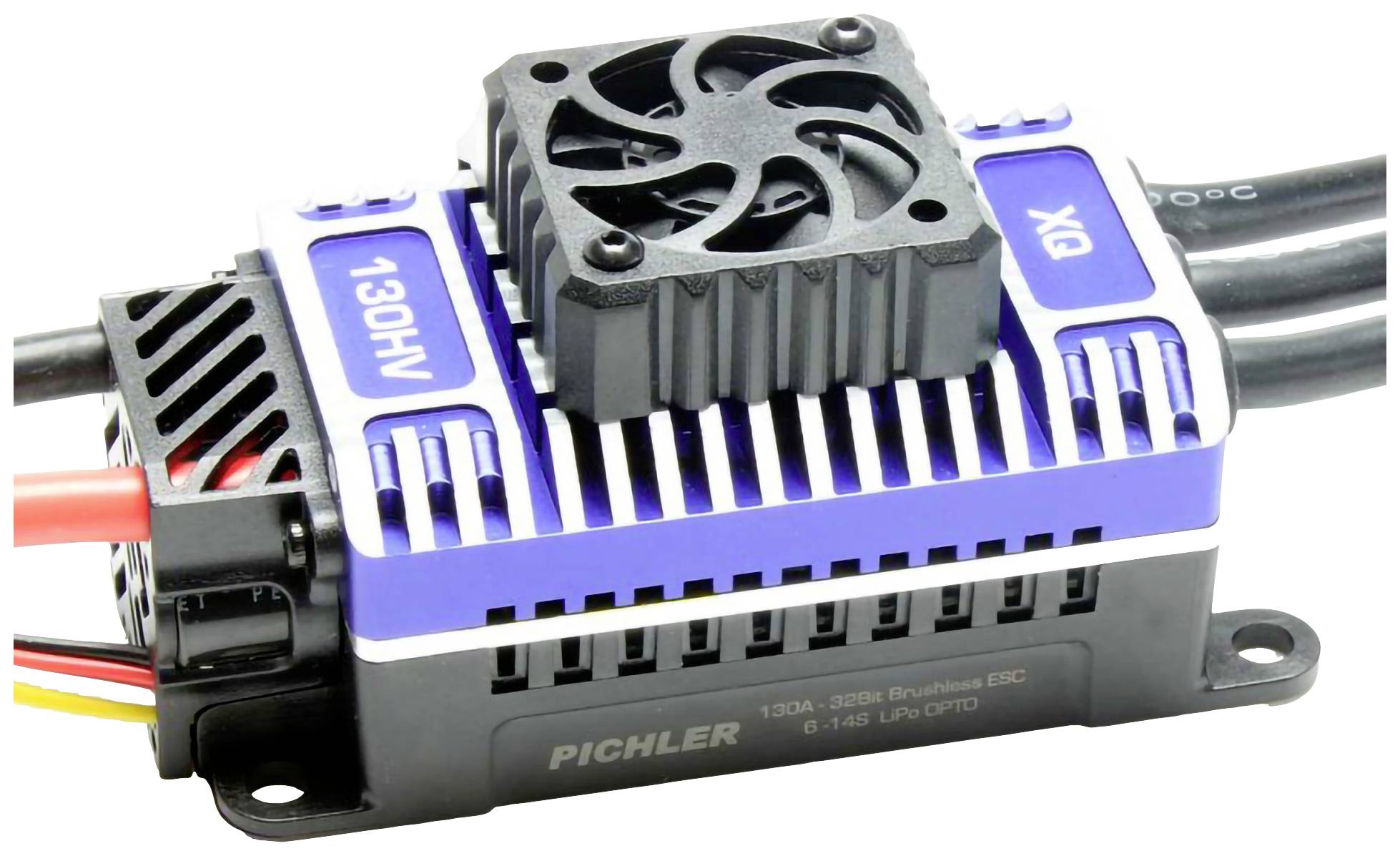

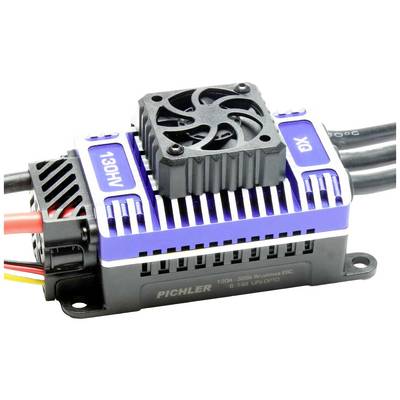

Pichler Modellbau XQ+ 130HV Model aircraft brushless motor controller Load (Amp max.): 150 A
EAN:
Part number:
Item no:
Highlights & Details
Brushless regulator XQ+ 130HV
- Forward/reverse operation possible - can be switched over your remote control transmitter (additionally free channel required)
- E-Impeller drives benefit from the push reversal and the active free wheel
- Easy programming via the new programming box or via Bluetooth/mobile phone app
Technical specifications
- LiPo cells = 6 -14
- Connections = AS150 + 4.0mm gold-contact sockets, signal cable Uni/JR
- Dimensions 85 x 50 x 45mm with fan
- Product type
Model aircraft brushless motor controller
- Permanent current
130 A
- Dim
(L x W x H) 85 x 45 x 33 mm
- Load (max.)
150 A
- Weight
220 g
- No. of LiPo cells
6 -14
- Width
45 mm
- Height
33 mm
- Length
85 mm
- Connector system
AS150
- Plug-in battery
AS150
- Motor connector system
4 mm gold-plated
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3014614 Pichler Modellbau XQ+ 130HV Model aircraft brushless motor controller Load (Amp max.): 150 A
Description
The controllers are ready to connect, with 3 gold contacts (motor connection) and AS150 for the battery connection. The running behavior is equally good with all the common external motors as well as inner motors. Operation is completely non-critical even in partial load range.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This control does not have a helicopter mode. Please use our SP-CON regulator for helicopters. AS150 plugs and sockets are included in our offer. The programming box or the Bluetooth module is required to program the controller.
This text is machine translated.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This control does not have a helicopter mode. Please use our SP-CON regulator for helicopters. AS150 plugs and sockets are included in our offer. The programming box or the Bluetooth module is required to program the controller.
This text is machine translated.
Features
- Ideal for flight models
- 32-bit microprocessor
- Integrated anti-flash (AS150)
- 1000-fold proven top quality
- Extremely sensitive control behavior
- High quality MOSFET transistors
- Pluggable fan (supplied)
- For all common brushless motors (external rotor or internal rotor)
- No BEC (external receiver power supply necessary)
