Pichler Modellbau XQ+ 20 Slim Model aircraft brushless motor controller Load (Amp max.): 30 A
EAN:
Part number:
Item no:
Highlights & Details

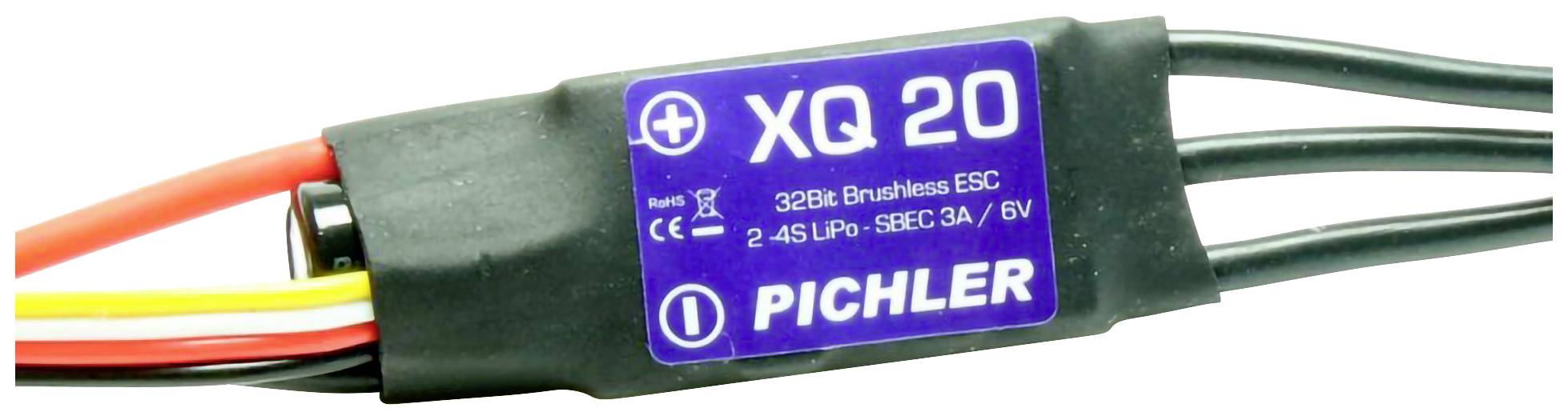

Brushless regulator XQ+ 20 Slim
- Very slim design
- Forward/reverse driving is possible (can be activated via your remote control transmitter)
- Easy programming via programming box or via Bluetooth/mobile phone app
Technical specifications
- Cells LiPo / NiXX = 2 -4 / 5 -12
- Connection = XT30 + 2.0mm gold contact (sockets)
- Product type
Model aircraft brushless motor controller
- Permanent current
20 A
- Dim
(L x W x H) 36 x 16 x 10 mm
- Load (max.)
30 A
- Weight
11 g
- BEC data
3A/6 V
- No. of LiPo cells
2 -4
- No. of NiCd/NiMH batteries
5 -12
- Width
16 mm
- Height
10 mm
- Length
36 mm
- Connector system
XT30
- Plug-in battery
XT30
- Motor connector system
2 mm socket
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3014603 Pichler Modellbau XQ+ 20 Slim Model aircraft brushless motor controller Load (Amp max.): 30 A
Description
The controllers are ready to connect, with 3 gold contacts (motor connection) and XT plug for the battery connection. The running behavior is equally good with all the common external motors as well as inner motors. Operation is completely non-critical even in partial load range.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This text is machine translated.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This text is machine translated.
Features
- Ideal for flight models
- 32-bit microprocessor
- Extremely sensitive control behavior
- Selected, high-quality MOSFET transistors
- Powerful, integrated BEC receiver power supply
- For all common brushless motors (external rotor or internal rotor)
- 1000-times proven top quality special accessories (recommended)
- Programming box, # 15966
- Bluetooth module ESC, # 15932
