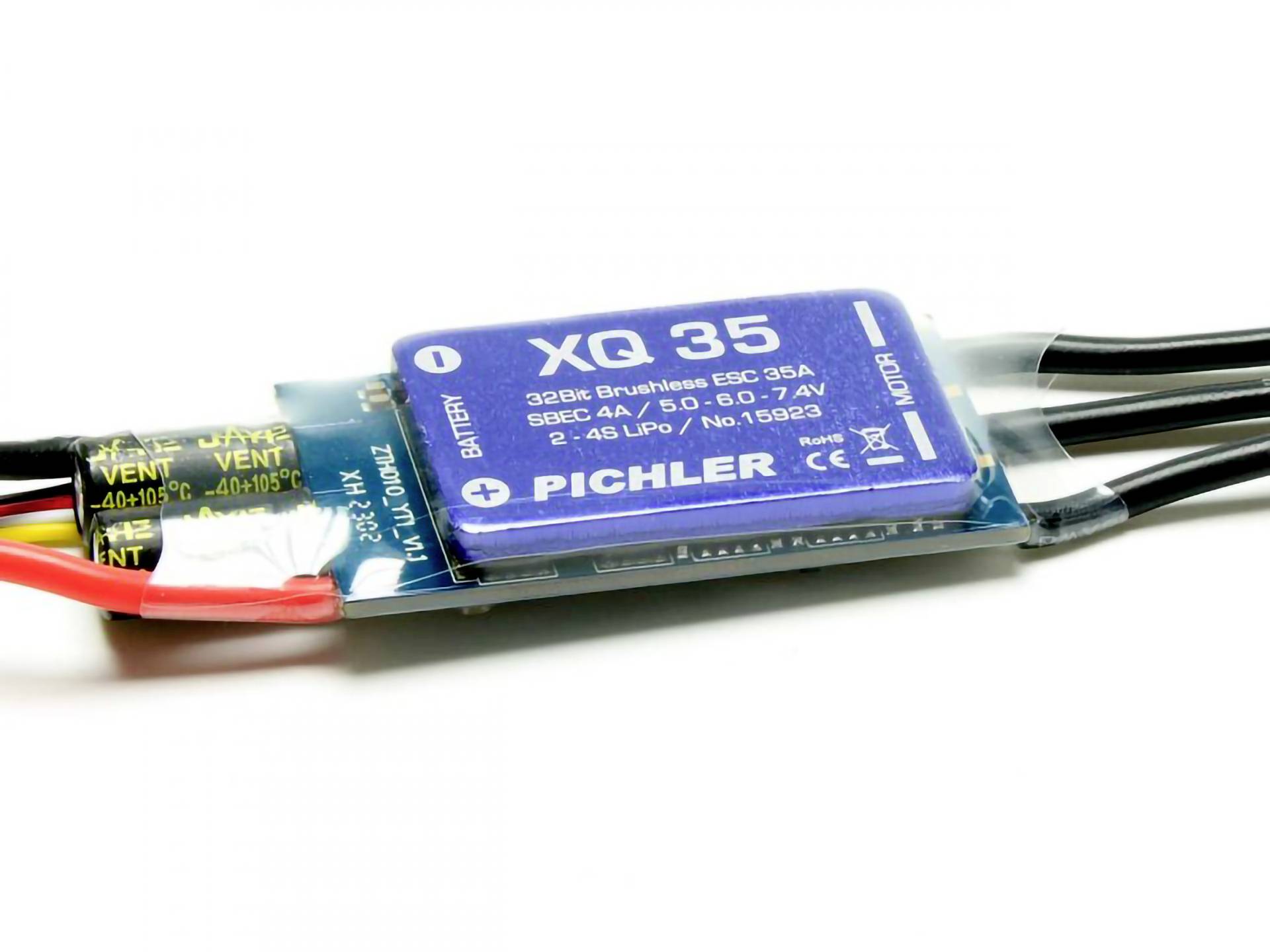

Pichler Modellbau XQ+ 35 Model aircraft brushless motor controller Load (Amp max.): 45 A
EAN:
Part number:
Item no:
Highlights & Details
Brushless regulator XQ+ 35
- Very slim design
- Forward/reverse driving is possible (can be activated via your remote control transmitter)
- Easy programming via programming box or via Bluetooth/mobile phone app
Technical specifications
- LiPo cells = 2 -4
- Product type
Model aircraft brushless motor controller
- Permanent current
35 A
- Dim
(L x W x H) 68 x 25 x 10 mm
- Load (max.)
45 A
- Weight
39 g
- BEC data
4A (5V - 6V - 7.4V)
- No. of LiPo cells
2 -4
- Width
25 mm
- Height
10 mm
- Length
68 mm
- Connector system
Connector with gold-plated contacts
- Motor connector system
Connector with gold-plated contacts
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3014607 Pichler Modellbau XQ+ 35 Model aircraft brushless motor controller Load (Amp max.): 45 A
Description
The controllers are ready to connect, with 3 gold contacts (motor connection) and XT plug for the battery connection. The running behavior is equally good with all the common external motors as well as inner motors. Operation is completely non-critical even in partial load range.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This text is machine translated.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This text is machine translated.
Features
- Ideal for flight models
- 32-bit microprocessor
- Extremely sensitive control behavior
- Selected, high-quality MOSFET transistors
- Powerful, integrated BEC receiver power supply
- For all common brushless motors (external rotor or internal rotor)
- 1000-times proven top quality special accessories (recommended)
- Programming box, # 15966
- Bluetooth module ESC, # 15932
